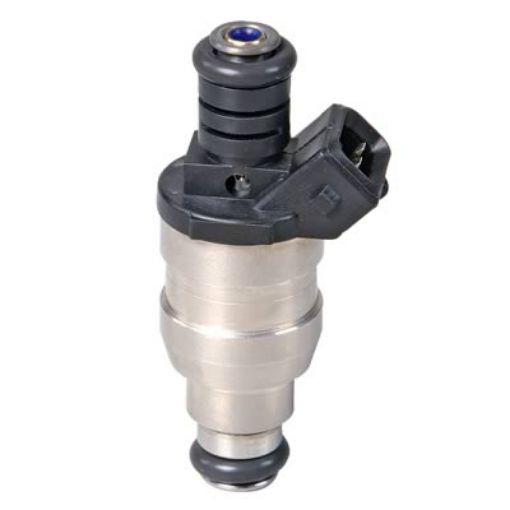

Injector 252 cc

This 252 cc high impedance fuel injector is suitable for EFI fuel systems where a compact and reliable injector is required for stock or modified engines. The injector has a rated flow capacity of 24 lbs/hr and can support up to approximately 45 hp per injector at 3 bar fuel pressure.

With an impedance of 11-13 ohms, the injector is designed for 12 V saturated injector drivers and can therefore be used with many common aftermarket and OEM engine management systems, provided the other electrical specifications are compatible.

The injector features a Bosch/Amp-style electrical connector and is supplied with O-rings for both the fuel rail and intake manifold. Its compact design and standardized O-ring dimensions make it suitable for a wide range of EFI applications where the physical dimensions and electrical connection are compatible.

Specifications:
Injector size: 252 cc
Flow: 24 lbs/hr
Power capacity: Up to approx. 45 hp per injector at 3 bar
Impedance: 11-13 ohms
Driver type: 12 V saturated circuit
Overall height: Approx. 71.9 mm / 2.830"
Seat-to-seat height: Approx. 60.8 mm / 2.392"
O-ring outside diameter, manifold: Approx. 15.0 mm / 0.590"
O-ring outside diameter, fuel rail: Approx. 15.0 mm / 0.590"
Maximum outside diameter: Approx. 23.9 mm / 0.941"
Electrical connector: Bosch/Amp-style
O-rings included: Yes
Wiring harness included: No
