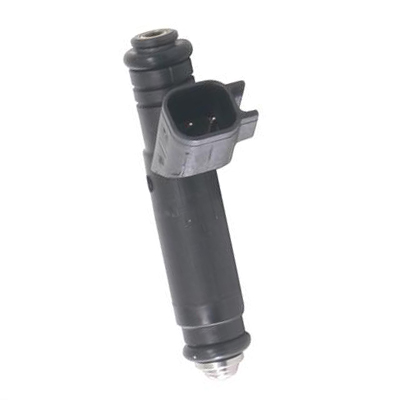

This 630 cc high impedance fuel injector is suitable for EFI fuel systems and modified engines with increased fuel demands. The injector has a flow capacity of 60 lbs/hr and is designed for applications where a stable and precise fuel supply is required.
The injector can be used with gasoline, E85 and alcohol-based fuels. At a 90% duty cycle, the injector can support up to approximately 88 hp per cylinder on gasoline and approximately 76 hp per cylinder on E85. The actual power capacity depends on factors including fuel pressure, engine setup and the required fuel volume.
With an impedance of 12.0 ohms, the injector is designed for 12 V saturated injector drivers. This makes it suitable for many common engine management systems, provided the other electrical specifications are compatible.
The injector features a USCAR electrical connector and is supplied with O-rings. Its compact design makes it suitable for a wide range of EFI applications where the physical dimensions, fuel system and electrical connection are compatible.
Specifications:
Injector size: 630 cc
Flow: 60 lbs/hr
Fuel type: Gasoline, E85 and alcohol-based fuels
Impedance: 12.0 ohms
Driver type: 12 V saturated circuit
Overall height: Approx. 74.9 mm / 2.950"
Seat-to-seat height: Approx. 60.5 mm / 2.380"
O-ring outside diameter, manifold: Approx. 14.0 mm / 0.551"
O-ring outside diameter, fuel rail: Approx. 13.5 mm / 0.531"
Maximum outside diameter: Approx. 15.0 mm / 0.591"
Electrical connector: USCAR
O-rings included: Yes
Wiring harness included: No
Power capacity at 90% duty cycle:
Gasoline:
1 cylinder: Up to approx. 88 hp
4 cylinders: Up to approx. 352 hp
5 cylinders: Up to approx. 440 hp
6 cylinders: Up to approx. 528 hp
8 cylinders: Up to approx. 704 hp
E85:
1 cylinder: Up to approx. 76 hp
4 cylinders: Up to approx. 304 hp
5 cylinders: Up to approx. 380 hp
6 cylinders: Up to approx. 456 hp
8 cylinders: Up to approx. 608 hp
