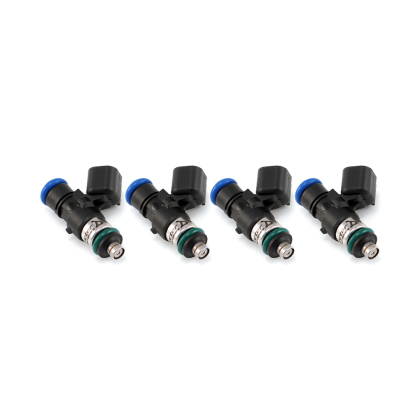

Injector Dynamics ID1050X petrol injectors for tuning, turbo engines and motorsport, where high flow capacity, precise fuel delivery and good control at both low and high load are required. ID1050X is a popular performance injector for engines where standard injectors can no longer supply the required fuel volume.
This set consists of 4 injectors with 34 millimetre length and USCAR connector. The injectors are top-feed and are suitable for engines where short injector length and 14 millimetre O-ring dimensions at both top and bottom match.
When used with petrol, the injectors can be calculated for circa 138 horsepower per cylinder, while on E85 they can be calculated for circa 120 horsepower per cylinder. E85 typically requires more fuel volume than petrol for the same power output, which means the possible output per injector will be lower on E85. The figures are indicative and based on turbo engines with circa 90% duty cycle.
Specifications:
Product: Injector Dynamics ID1050X
Set: 4 injectors
Length: 34 millimetres
Top O-ring: 14 millimetres
Lower O-ring: 14 millimetres
Type: Top-feed petrol injector
Calculated output petrol: Up to 138 hp per cylinder
Calculated output E85: Up to 120 hp per cylinder
Calculated output 4-cylinder petrol: Up to 552 hp
Calculated output 4-cylinder E85: Up to 480 hp
Fits among others:
Subaru WRX 2002-2014
Subaru STI 2004-2020
Toyota Supra 1JZ / 2JZ
Toyota MR2 Turbo
Toyota Celica GT / GTS
Toyota GR86 / GT86
Volkswagen 1.8T
Volkswagen EA888 Gen 3
Volkswagen VR6 12V / 24V
Yamaha FX SHO
Yamaha Apex / Nytro
Yamaha YXZ1000 UTV
