Injector Dynamics ID-PTS is a combined fuel pressure and temperature kit developed specifically for the Injector Dynamics ID-F750 fuel filter. The kit makes it possible to monitor both fuel pressure and fuel temperature from one compact unit without the need for extensive modifications to the existing fuel system.
The unit mounts directly to the ID-F750 filter using two screws and reuses the existing hose connection. The compact design only increases the total width of the filter by approximately 27-30 millimetres, which in many installations makes it possible to retrofit the system without making new hoses or changing the pipe routing.
ID-PTS is equipped with a Bosch Motorsport 0-10 bar pressure sensor with integrated fuel temperature sensor. The combination provides precise data for ECU, data logging or motorsport instrumentation where monitoring the condition of the fuel system is important. The temperature sensor operates from -40°C to 140°C, while the pressure sensor measures up to 10 bar (145 PSI).
The kit is developed for motorsport, tuning and high-performance fuel systems and fits directly to the Injector Dynamics ID-F750 fuel filter.
Specifications:
Type: Fuel pressure and temperature kit
Compatibility: Injector Dynamics ID-F750 fuel filter
Pressure sensor: Bosch Motorsport 0-10 bar (145 PSI)
Temperature range: -40°C to 140°C
Mounting: Directly on ID-F750 filter
Additional width: Approx. 27-30 millimetres
Fastening: 2 screws
Application: ECU, data logging and motorsport instrumentation

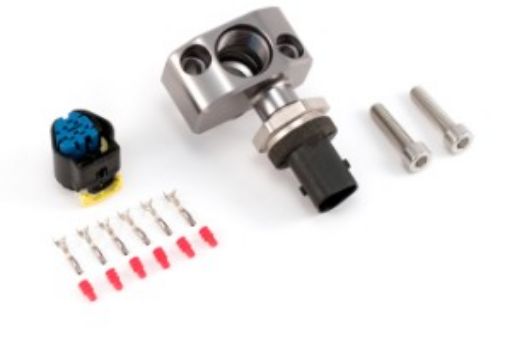

Contents:
ID-PTS sensor block
Bosch Motorsport pressure sensor
Integrated fuel temperature sensor
Mounting screws
