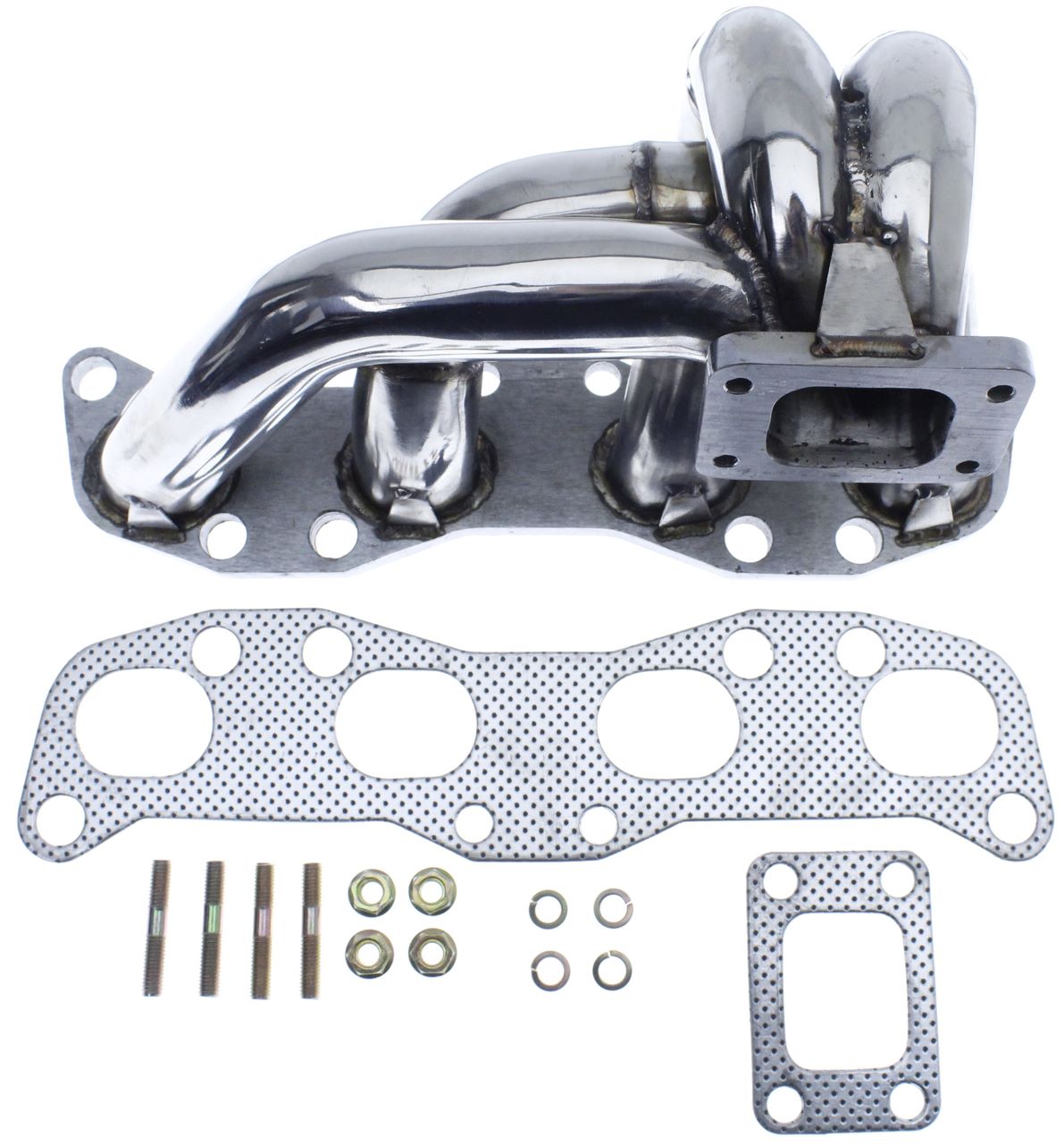

Nissan CA18DET turbo manifold – stainless steel manifold with T25 flange

Nissan CA18DET turbo manifold – stainless steel manifold with T25 flange

Stainless steel turbo manifold for Nissan CA18DET, suitable for upgrade or replacement of the original manifold on turbo builds and performance setups. The manifold is made from stainless steel with pipes measuring 42 mm in outside diameter and approx. 2 mm wall thickness, giving a good balance between strength and flow.

The manifold is designed for bottom mount installation and fits T25 turbo setups. When installing it together with the standard turbo, modification of the downpipe should be expected to make it fit correctly with the rest of the exhaust system.

The flanges are 10 mm thick and equipped with support brackets, which help increase stability and reduce stress from vibrations. However, it is still recommended to fit a strong support bracket between the engine and turbocharger, so the manifold is not unnecessarily loaded.

Gaskets are included with this turbo manifold.

Specifications

Fits: Nissan CA18DET
Turbo flange: T25
Mounting: Bottom mount
Material: Stainless steel
Pipe outside diameter: 42 mm
Wall thickness: approx. 2 mm
Port opening, cylinder head side: approx. 42 x 32 mm
Flange thickness: 10 mm
Weight: 3.25 kg
Gaskets: Included
Note: Downpipe may need to be modified when used with the standard turbo
Recommendation: A strong support bracket between the engine and turbocharger should be used
