Nuke Performance 10 micron cellulose filter insert

Nuke Performance 10 micron filter insert is a replacement insert for Nuke Performance fuel filters. The filter is made with cellulose media and is designed for petrol, where fine filtration is required before sensitive components in the fuel system.

The filter insert fits Nuke Performance Fuel Filter and Fuel Filter Slim in the short filter type. It has stainless steel end caps and is supplied with 2 new Viton O-rings, which should be replaced together with the filter insert to ensure correct sealing during service.

The cellulose filter is not suitable for alcohol-based fuels such as E85. For E85 and ethanol, a stainless steel filter insert should be used instead. For optimal function, it is recommended to replace the filter insert at least once per season.

Specifications:
Type: Replacement filter insert
Filter material: Cellulose
Filtration: 10 micron
Fuel compatibility: Petrol
Length: 75 millimetres
Diameter: 42 millimetres
Filter area: Over 60 square inches
Working pressure: 8 bar
Maximum pressure: 21 bar
Flow capacity: 750 LPH
Pressure drop: Approx. 0.15 bar
End caps: Stainless steel

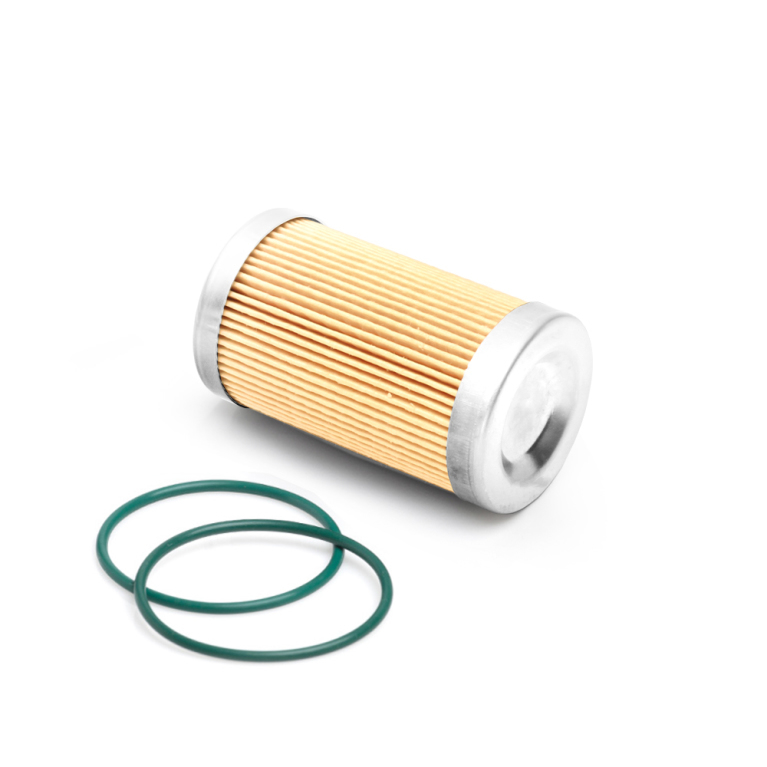

Contents: 1 x 10 micron cellulose filter insert and 2 x Viton O-rings
