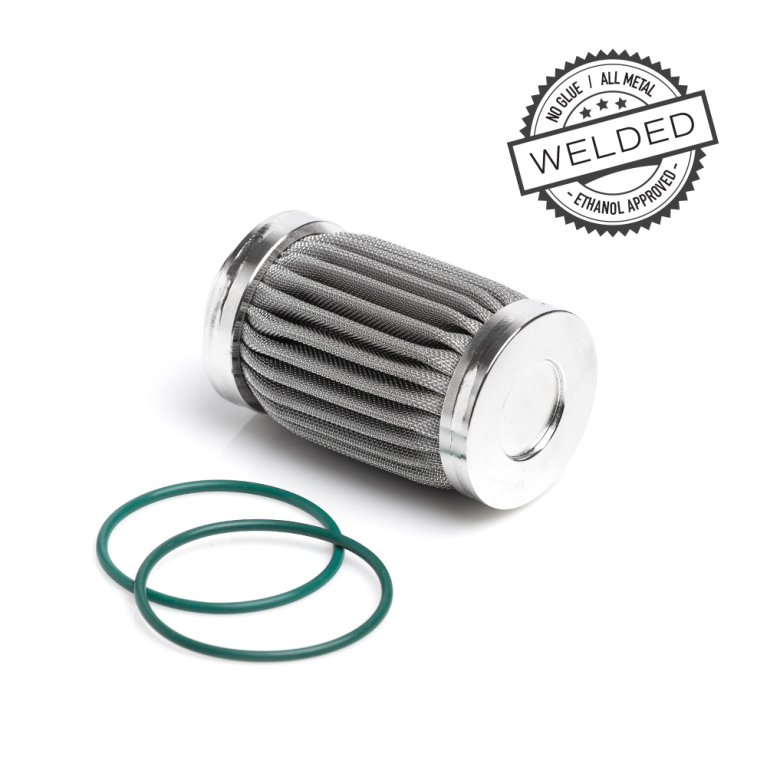

Nuke Performance 10 micron filter insert is a replacement insert for Nuke Performance fuel filters. The filter is made from welded stainless steel and can be used with petrol, diesel, ethanol, methanol and E85.
The fine 10 micron filtration makes the filter insert suitable where effective filtration is required before sensitive components in the fuel system. The stainless steel construction makes the filter insert particularly suitable for alcohol-based fuels, where stainless steel filter inserts are recommended.
The filter insert fits Nuke Performance Fuel Filter and Fuel Filter Slim in the short filter type. It is supplied with 2 new Viton O-rings, which should be replaced together with the filter insert to ensure correct sealing during service. The filter insert can be cleaned and reused, and should be inspected or cleaned at least once per season.
Specifications:
Type: Replacement filter insert
Filter material: Welded stainless steel
Filtration: 10 micron
Fuel compatibility: Petrol, diesel, ethanol, methanol and E85
Length: 75 millimetres
Diameter: 42 millimetres
Weight: 171 grams
Filter area: 60 square inches
Working pressure: 8 bar
Maximum pressure: 21 bar
Flow capacity: 750 LPH
Pressure drop: Approx. 0.15 bar
End caps: Stainless steel
Contents: 1 x 10 micron stainless steel filter insert and 2 x Viton O-rings
