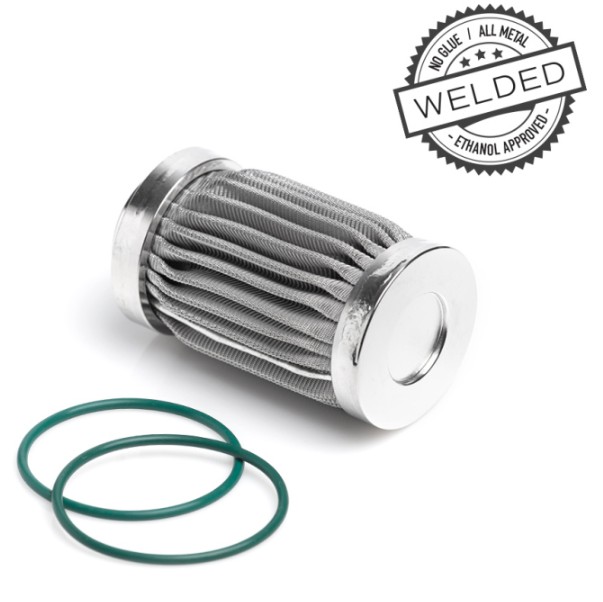

Nuke Performance 100 micron filter insert is a replacement insert for Nuke Performance fuel filters. The filter is made from welded stainless steel and can be used with all common fuel types, including petrol, diesel, ethanol, methanol and E85. The coarse filtration makes the filter suitable as a pre-filter before the fuel pump in high-performance fuel systems.
The filter insert fits Nuke Performance Fuel Filter and Fuel Filter Slim in the short filter version. It is equipped with stainless steel end caps and supplied with 2 new Viton O-rings, which should be replaced together with the filter insert to ensure proper sealing during service.
The stainless steel filter insert can be cleaned and reused, making it particularly suitable for ethanol- and methanol-based fuels. For optimal performance, it is recommended to clean or inspect the filter insert at least once per season.
Specifications:
Type: Replacement filter insert
Filter material: Welded stainless steel
Filtration: 100 micron
Fuel compatibility: Petrol, diesel, ethanol, methanol and E85
Length: 75 millimetres
Diameter: 42 millimetres
Filter area: Over 60 square inches
Working pressure: 8 bar
Maximum pressure: 21 bar
Flow capacity: 750 LPH
Pressure drop: Approx. 0.15 bar
End caps: Stainless steel
Contents: 1 x 100 micron stainless steel filter insert and 2 x Viton O-rings
