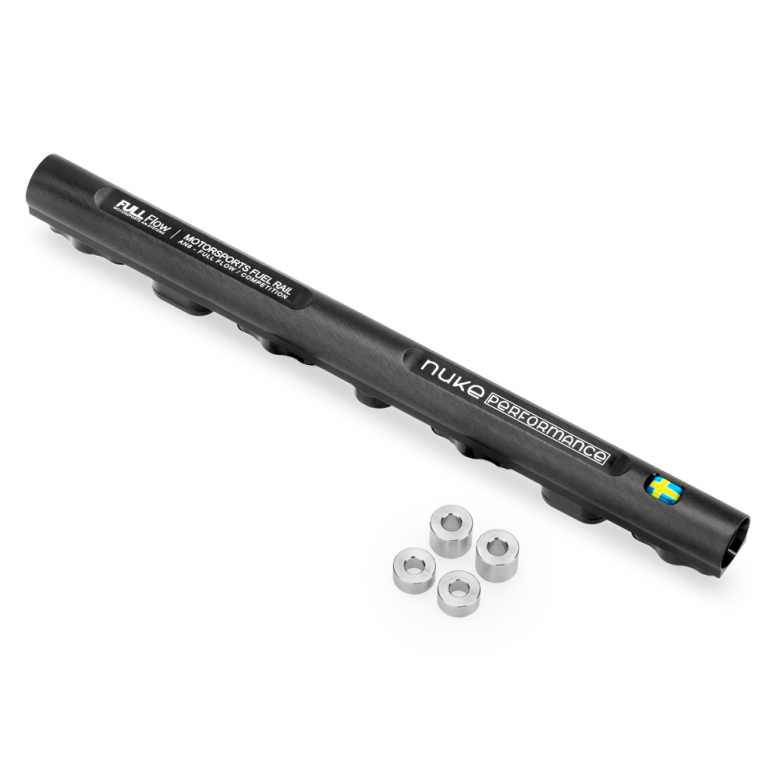

Nuke Performance fuel rail for Audi and Volkswagen 4-cylinder 1.8T 20V engines. The fuel rail is developed as a high-flow solution for upgrading the fuel system and is suitable for tuning, E85, turbo and motorsport where improved flow, AN connection and secure injector retention are required. Fittings and injectors are not included and must be purchased separately.
The fuel rail is lightweight, has oversized internal flow and is made for Bosch EV14S type injectors with 14 millimeter injector size. It is supplied with brackets for installation on Audi and VW 1.8T 20V intake manifolds as well as adapters, allowing it to be adapted to different intake manifolds.
The fuel rail has -8AN ORB threads at both ends, allowing high fuel flow and flexible setup with AN hoses, fittings, regulator and fuel system according to your own setup. In addition, it has an extra -6AN ORB side port which can be used for an additional connection, sensor, return or other setup as needed.
Nuke Performance uses injector safety clips on their fuel rails, which help securely retain the injectors in the fuel rail. This provides a safer solution under high fuel pressure, heavy load and motorsport use where fuel leakage must be minimised.
The fuel rail is compatible with petrol, ethanol, E85, E100 and methanol.
Specifications:
Fits: Audi and Volkswagen 1.8T 20V engines
Injector type: Bosch EV14S style
Injector size: 14 millimeter
End ports: -8AN ORB / dash 8AN ORB
Side port: -6AN ORB / dash 6AN ORB
Length: 309 millimeter
Height: 32 millimeter
Weight: 293 gram
Fuel compatibility: Petrol, ethanol, E85, E100 and methanol
The kit includes:
1 x AN-8 ORB full flow fuel rail profile for Audi and VW 1.8T 20V
2 x aluminium brackets for Audi and VW 1.8T 20V
1 x AN-6 ORB plug
4 x Nuke Performance injector safety clips
8 x stainless MC6S M4x6 millimeter bolts
4 x stainless K6S M6x10 millimeter bolts
2 x stainless K6S M6x20 millimeter bolts
2 x stainless K6S M6x30 millimeter bolts
2 x stainless 8 millimeter spacers
2 x stainless 13 millimeter spacers
Fits:
Audi A3 1.8T 20V MK1 8L 1996-2003
Audi A4 1.8T 20V B6 2002-2005
Audi A6 1.8T 20V C5 1998-2004
Audi A6 Allroad 1.8T 20V C5 1998-2004
Audi S3 1.8T 20V MK1 8L 1996-2003
Audi TT 1.8T 20V MK1 8N 2000-2006
VW Beetle 1.8T 20V 1C/9C/1Y 1998-2011
VW Golf 1.8T 20V MK4 1999-2005
VW Golf GTI 1.8T 20V MK4 1999-2005
VW Jetta / Jetta GLI 1.8T 20V MK4 1999-2005
VW Passat 1.8T 20V B5/B5.5 1998-2005
