Nuke Performance fuel filler kit is a complete remote fuel filling solution for Nuke Performance CFC Unit, fuel cells and custom-built fuel systems. The kit combines remote quick release fuel cap, fuel filler hose kit and remote mount fill neck, allowing the fuel filler point to be placed more practically and accessibly in the car.
The fuel cap is made from aluminium and has a quick lock mechanism, which opens and closes with a 90-degree turn. The spring-loaded construction and Viton gasket provide secure and effective sealing, while the safety wire kit adds extra security for demanding motorsport use.
The included fuel filler hose is made from antistatic nylon with a corrugated construction, making the hose flexible and easy to route through bodywork and tight areas. The hose is lightweight, can be shortened if needed and is supplied with Viton bushings and stainless steel hose clamps.
The kit fits directly to Nuke Performance CFC Unit and can also be used for other fuel cell installations where 50 millimetre fuel hose is used. It is suitable for petrol, diesel, E85, ethanol, methanol and race fuel.
Specifications:
Type: Fuel filler kit
Fuel cap material: Aluminium
Hose material: Antistatic nylon
Locking mechanism: Quick lock, 90-degree turn
Fuel cap mounting: 5-bolt mounting
Hose connection: 50 millimetres
Connection to CFC Unit: Remote mount fill neck
Seals: Viton
Fuel compatibility: Petrol, diesel, E85, ethanol, methanol and race fuel
Measurements:
Fuel cap outer diameter: 110.5 millimetres
Height above panel: 12 millimetres
Total fuel cap depth: 64 millimetres
Barb length: 25 millimetres
Bolt pattern: PCD 5 x 60 millimetres / BCD 96 millimetres
Bolt size: M6
Hose length: 915.5 millimetres
Hose inner diameter: 54 millimetres
Bushing inner diameter: 50 millimetres

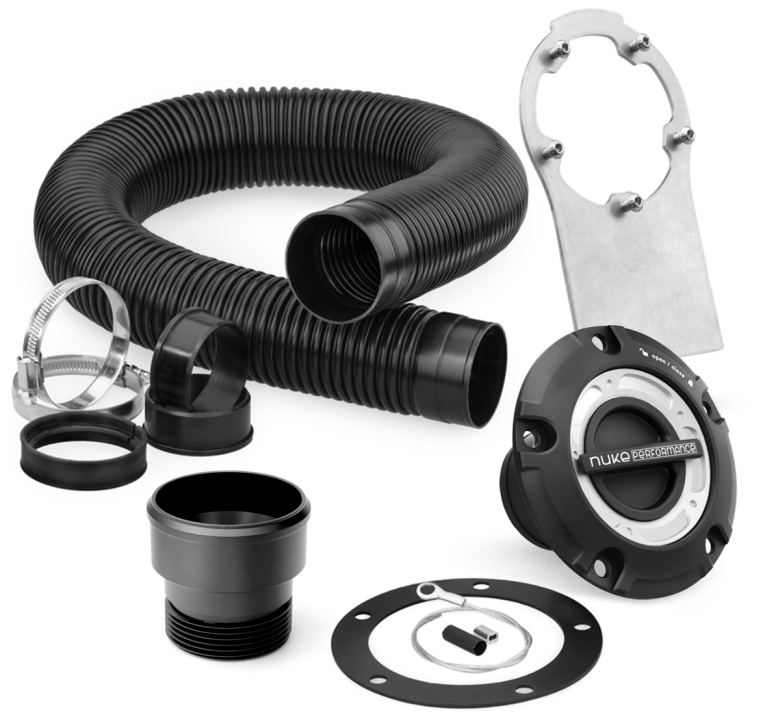

Contents:
1 x Remote quick release fuel cap
1 x Fuel cap body with barb connection for 50 millimetre hose
1 x Safety wire kit for M6 mounting
1 x Viton gasket
1 x Corrugated fuel filler hose
2 x Viton bushings
2 x Stainless steel hose clamps
1 x POM clamp insert for shortening the hose
5 x K6S M6x12 stainless steel bolts
1 x Remote mount fill neck for CFC Unit
1 x Steel bracket
