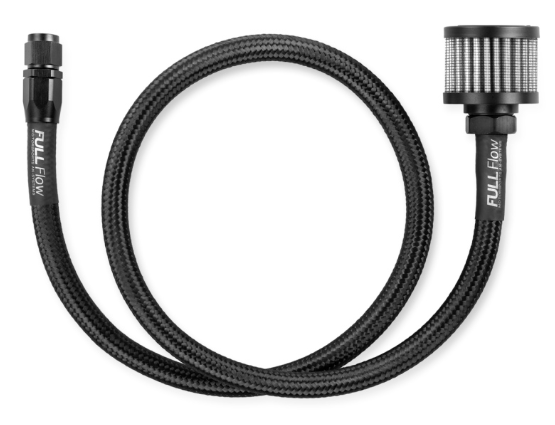

Nuke Performance fuel cell vent kit is a complete vent kit for fuel cells and motorsport fuel systems. The kit ensures correct tank ventilation and helps prevent overpressure in the fuel cell during operation. It fits directly to the Nuke Performance CFC Unit as well as many other aftermarket fuel cells and fill plates.
The fuel cell vent kit is supplied complete with air filter, fittings and 1 metre of Nuke Performance full flow nitrile fuel hose, making installation quick and simple. The universal air filter uses AN-10 ORB thread instead of traditional hose connections, providing high flexibility and allowing different fitting configurations.
The AN6 version fits directly to the Nuke Performance CFC Unit. The kit is compatible with petrol, methanol, ethanol, E85 and E100. Information about compatibility, sizes and contents is based on the manufacturer’s specifications.
Note:
Vent hoses for fuel cells should always be routed away from heat sources, sparks and exposed areas to reduce the risk of damage during motorsport use. The manufacturer also recommends using a rollover-protected vent fitting on the fuel cell.
Specifications:
Type: Fuel cell vent kit
Size: AN6
Hose length: 1 metre nitrile fuel hose
Air filter connection: AN-10 ORB
Adapter: AN-10 ORB to 10 millimetre hose barb
Fuel compatibility: Petrol, methanol, ethanol, E85 and E100
Replaceable air filter: Yes
Dimensions:
Air filter diameter: 50 millimetres
Air filter height: 45 millimetres
Air filter weight: 43 grams
Contents:
1 x Universal air filter with AN-10 ORB thread
1 x AN-10 ORB to 10 millimetre hose barb
2 x Full flow straight AN6 fittings
1 x 1 metre full flow nitrile AN6 fuel hose
