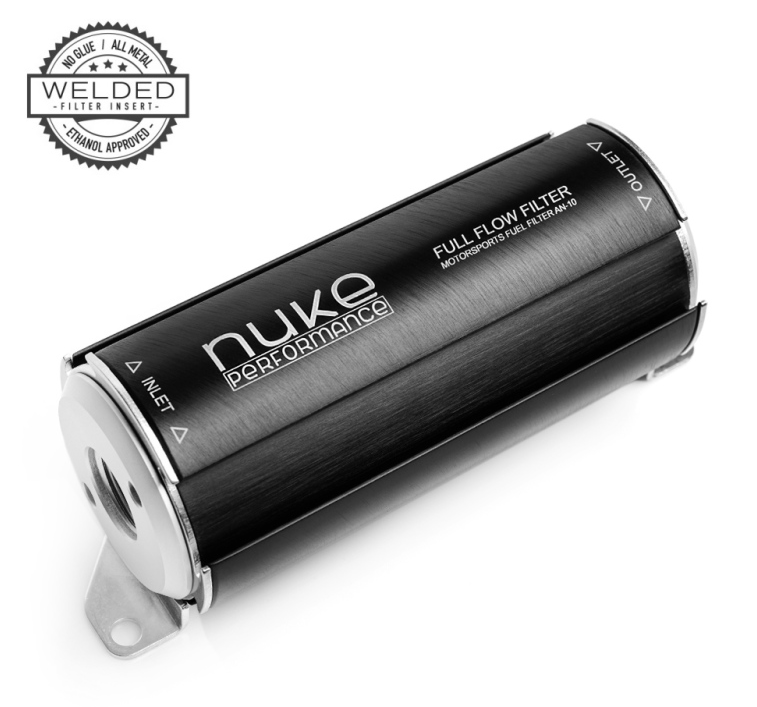

Nuke Performance fuel filter AN10 is a high-flow inline fuel filter for motorsport, tuning and high-performance fuel systems. This version is supplied with a 10 micron cellulose filter element and is suitable as a fine filter after the fuel pump.
The filter housing is made from aluminium and has integrated stainless steel mounting brackets, allowing the filter to be mounted securely without a separate filter holder. AN10 ORB inlet and outlet provide high flow capacity and make the filter flexible to adapt with suitable AN fittings.
The 10 micron cellulose element provides fine filtration and is typically used after the fuel pump, before the fuel rail or injectors. This filter type is suitable for petrol and diesel, but should not be used with ethanol, methanol or other alcohol-based fuels, as the cellulose element is not the right solution for aggressive fuels.
The filter is service-friendly and can be disassembled when the filter element needs to be checked or replaced. The compact design makes it suitable for engine bays, luggage compartments and custom-built fuel systems.
Specifications:
Type: Complete inline fuel filter
Inlet connection: AN10 ORB
Outlet connection: AN10 ORB
Filter element: 10 micron cellulose
Fuel compatibility: Petrol and diesel
Length: 148 millimetres
Height: 68 millimetres
Width: 65 millimetres
Mounting: Integrated stainless steel mounting brackets
Mounting pattern: M6, CC 156 millimetres
Filter area: Over 60 square inches
Flow capacity: 750 LPH
Filter housing: Aluminium
Contents: 1 x fuel filter with 10 micron cellulose filter element
Part number: 200-01-200
