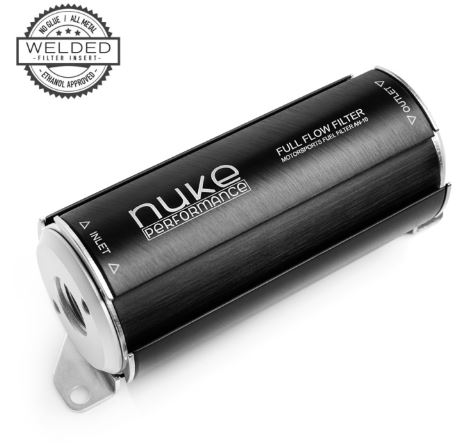

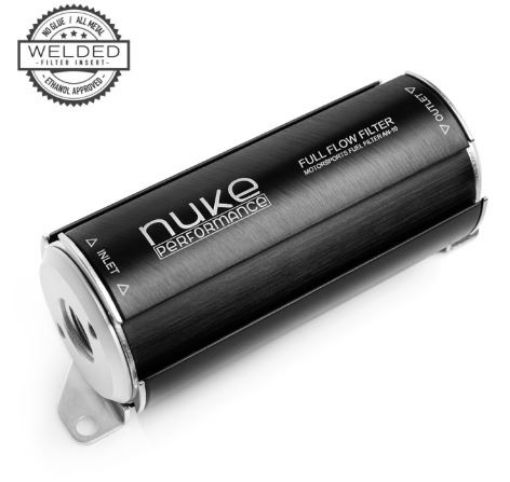

Nuke Performance fuel filter AN10 is a high-flow inline fuel filter for motorsport, tuning and high-performance fuel systems. This version is supplied with a 100 micron filter insert in welded stainless steel and is suitable as a pre-filter before the fuel pump.
The filter housing is made from aluminium and has integrated stainless steel mounting brackets, allowing the filter to be mounted securely without a separate filter holder. The AN10 ORB connections provide high flow capacity and low flow restriction in fuel systems with larger pumps and high fuel demand.
The stainless steel 100 micron filter insert can be used with petrol, diesel, ethanol, methanol and E85. The welded stainless steel construction makes the filter insert easy to clean and particularly suitable for alcohol-based and aggressive fuels, where cellulose filters are not recommended.
The filter has over 60 square inches of filter area and a flow capacity of up to 750 LPH. During regular service, it is recommended to inspect and clean the filter insert at least once per season.
Specifications:
Type: Complete inline fuel filter
Inlet connection: AN10 ORB
Outlet connection: AN10 ORB
Filter insert: 100 micron stainless steel
Fuel compatibility: Petrol, diesel, ethanol, methanol and E85
Length: 148 millimetres
Height: 68 millimetres
Width: 65 millimetres
Mounting: Integrated stainless steel mounting brackets
Bolt pattern: M6, CC 156 millimetres
Filter area: Over 60 square inches
Flow capacity: 750 LPH
Filter housing: Aluminium
Contents: 1 x fuel filter with 100 micron stainless steel filter insert
Part number: 200-01-202
