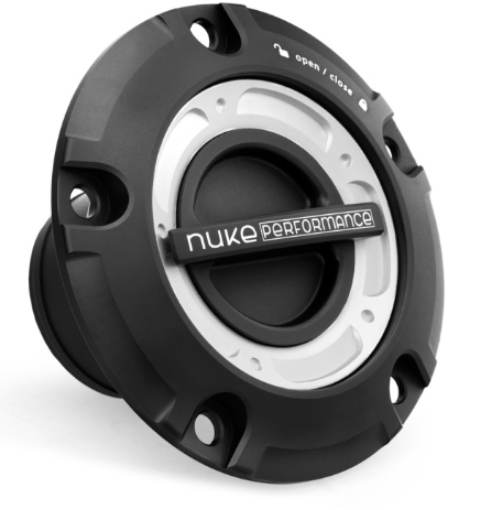

Nuke Performance remote quick release fuel cap is developed for motorsport, fuel cells and custom-built fuel systems where the fuel filler needs to be placed in a more accessible position than directly on the tank itself. It fits 50 millimetre fuel hose and is suitable for remote filler solutions on performance and motorsport cars.
The filler cap is equipped with a quick lock mechanism, which opens and closes with a 90-degree turn. This provides fast and secure access when refuelling, while the spring-loaded construction and Viton seal ensure effective closure.
The unit has 5-bolt mounting and a barb connection for 50 millimetre fuel hose. The Viton gasket makes it suitable for petrol, diesel, E85, ethanol, methanol and race fuel. Safety wire kit and Viton gasket are included.
Specifications:
Type: Remote quick release fuel cap
Material: Aluminium
Mounting: 5-bolt mounting
Locking mechanism: Quick lock, 90-degree turn
Seal: Viton gasket
Fuel compatibility: Petrol, diesel, ethanol, methanol, E85 and race fuel
Safety wire: Included
Bolts: Not included
Measurements:
Hose connection: 50 millimetres
Connection length: 25 millimetres
Bolt pattern: PCD 5 x 60 millimetres / BCD 96 millimetres
Bolt size: M6
Outer diameter: 110.5 millimetres
Height above panel: 12 millimetres
Total depth: 64 millimetres
Weight: 366 grams
