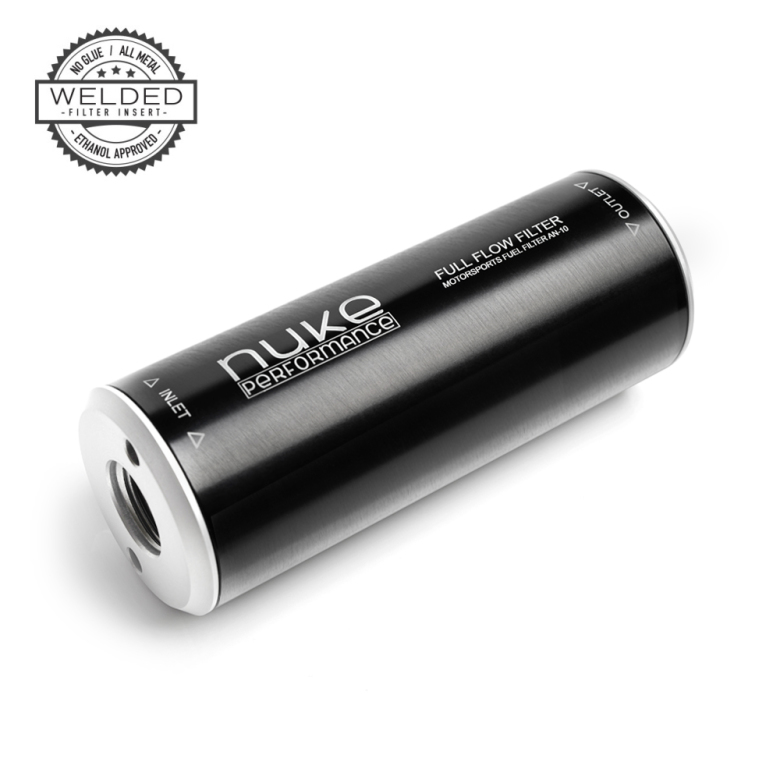

Nuke Performance slim fuel filter AN10 is a compact fuel filter for petrol-based fuel systems where fine filtration and a low overall height are required. The filter is supplied as a complete filter housing with a fitted 10 micron cellulose filter insert and AN10 ORB connections.
Nuke Performance Fuel Filter Slim is developed for motorsport, tuning and high-performance fuel systems where space is limited. The slim construction makes it easier to install the filter in the engine bay, boot or under the car, where a standard fuel filter may take up too much space.
The fitted 10 micron cellulose filter insert provides fine filtration before sensitive components in the fuel system. The cellulose filter is designed for petrol and should not be used with alcohol-based fuels such as E85, ethanol or methanol. For these fuels, a stainless steel filter insert should be selected instead.
The filter is supplied with Viton O-rings and can be serviced by replacing the filter insert. During regular service, it is recommended to inspect the filter and replace the insert at least once per season.
Specifications:
Type: Complete fuel filter
Model: Slim
Connection: AN10 ORB
Filter insert: 10 micron cellulose
Fuel compatibility: Petrol
Filter housing: Aluminium
O-rings: Viton
Part number: 200-02-201
