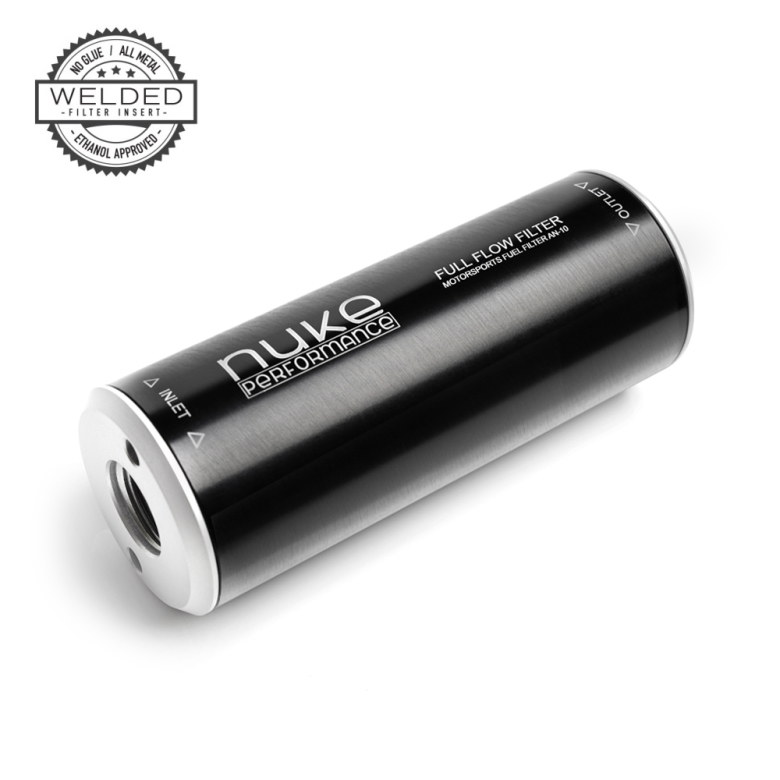

Nuke Performance Slim fuel filter AN10 is a compact high-flow inline fuel filter developed for motorsport, tuning and high-performance fuel systems where space is limited. This version is supplied with a 100 micron welded stainless steel filter element, compatible with petrol, diesel, ethanol, methanol and E85. The filter is suitable as a pre-filter before the fuel pump and provides high flow capacity with minimal pressure drop.
The filter housing is made from lightweight aluminium with a slim design of only 55 millimetres in diameter. AN10 ORB inlet and outlet ensure maximum flow capacity and allow the use of a wide range of AN adapters and fittings. The welded filter element is made completely without glue and is therefore suitable for aggressive fuels such as ethanol and methanol.
The stainless steel 100 micron filter element can be cleaned and reused, making the filter suitable for motorsport and performance applications with high requirements for reliability and filtration.
Specifications:
Type: Complete inline fuel filter Slim
Inlet connection: AN10 ORB
Outlet connection: AN10 ORB
Filter element: 100 micron stainless steel
Fuel compatibility: Petrol, diesel, ethanol, methanol and E85
Length: 144 millimetres
Diameter: 55 millimetres
Filter area: Over 60 square inches
Flow capacity: 750 LPH
Working pressure: 8 bar
Maximum pressure: 21 bar
Pressure drop: Approx. 0.15 bar
Filter housing: Aluminium
Part number: 200-02-202
