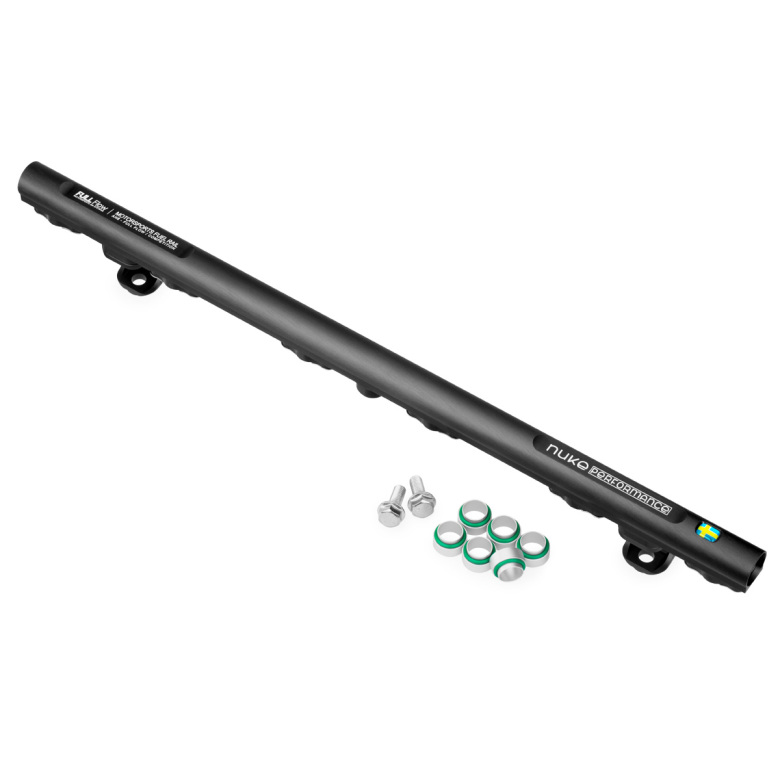

Nuke Performance fuel rail for Toyota 2JZ-GTE engines. The fuel rail is developed as a high-flow solution for upgrading the fuel system and is suitable for tuning, E85, turbo and motorsport, where better flow, AN connection and secure injector retention are required. Fittings and injectors are not included and must be purchased separately.
The fuel rail is lightweight, has oversized internal flow and is made for Bosch EV14L style top feed injectors in 65 millimetre length. Injector adapters with O-rings for use with the OEM intake manifold are included, as well as brackets for both VVTi and non-VVTi 2JZ-GTE intake manifolds.
The fuel rail has -8AN ORB threads at both ends, allowing high fuel flow and flexible setup with AN hoses, fittings, regulator and fuel system according to your own setup. It also has an extra -6AN ORB side port, which can be used for an additional connection, sensor, return or other setup as needed.
Nuke Performance uses injector safety clips on their fuel rails, which help secure the injectors safely in the fuel rail. This provides a safer solution at high fuel pressure, heavy load and motorsport, where fuel leakage must be minimised.
The fuel rail is compatible with petrol, ethanol, E85, E100 and methanol.
Specifications:
Fits: Toyota 2JZ-GTE VVTi and non-VVTi
Injector type: Bosch EV14L style
Injector length: 65 millimetres
End ports: -8AN ORB / dash 8AN ORB
Side port: -6AN ORB / dash 6AN ORB
Length: 506 millimetres
Height: 32 millimetres
Weight: 460 grams
Fuel compatibility: Petrol, ethanol, E85, E100 and methanol
The kit includes:
1 x AN-8 ORB full flow fuel rail profile for Toyota 2JZ-GTE
2 x aluminium brackets for 2JZ-GTE intake manifold
6 x injector adapter kits with O-rings for EV14 injectors
1 x AN-6 ORB plug
6 x Nuke Performance injector safety clips
12 x stainless MC6S M4x6 millimetre bolts
4 x stainless K6S M6x10 millimetre bolts
2 x stainless M6SF M8x20 millimetre bolts
Fits:
Toyota Supra MK4 2JZ-GTE VVTi
Toyota Supra MK4 2JZ-GTE non-VVTi
Toyota Aristo 2JZ-GTE
Toyota Soarer 2JZ-GTE
