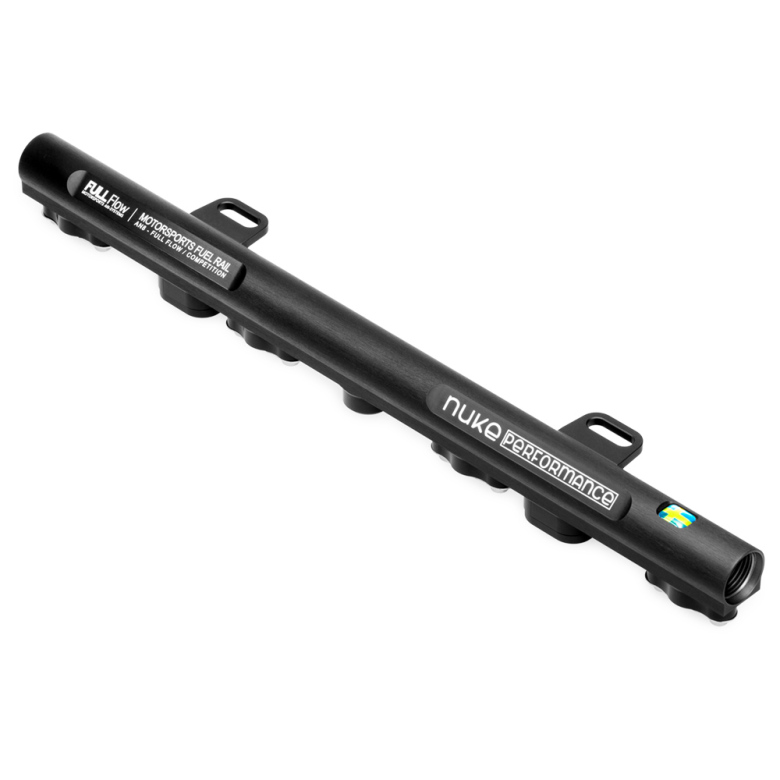

Nuke Performance fuel rail for Volvo 4-cylinder Redblock engines with 8V and 16V cylinder head. The fuel rail is developed as a high-flow solution for upgrading the fuel system and is suitable for tuning, E85, turbo and motorsport, where better flow, AN connection and secure injector retention are required. Fittings and injectors are not included and must be purchased separately.
The fuel rail is lightweight, has oversized internal flow and is made for Bosch EV14L style injectors. It is supplied with brackets for mounting on both Volvo Redblock 8V and 16V intake manifolds and fits Volvo 200, 700 and 900 series with 4-cylinder Redblock engine.
The fuel rail has -8AN ORB threads at both ends, allowing high fuel flow and flexible setup with AN hoses, fittings, regulator and fuel system according to your own setup. It also has an extra -6AN ORB side port, which can be used for an additional connection, sensor, return or other setup as needed.
Nuke Performance uses injector safety clips on their fuel rails, which help secure the injectors safely in the fuel rail. This provides a safer solution at high fuel pressure, heavy load and motorsport, where fuel leakage must be minimised.
The fuel rail is compatible with petrol, ethanol, E85, E100 and methanol.
Specifications:
Fits: Volvo 200 / 700 / 900 series with 4-cylinder Redblock 8V / 16V engine
Engine: Volvo B23 / B230 Redblock
Injector type: Bosch EV14L style
End ports: -8AN ORB / dash 8AN ORB
Side port: -6AN ORB / dash 6AN ORB
Length: 363 millimetres
Height: 32 millimetres
Weight: 308 grams
Fuel compatibility: Petrol, ethanol, E85, E100 and methanol
The kit includes:
1 x AN-8 ORB full flow fuel rail profile for Volvo Redblock 8V / 16V
2 x aluminium brackets for Volvo Redblock 8V / 16V
1 x AN-6 ORB plug
4 x Nuke Performance injector safety clips
2 x stainless MC6S M4x6 millimetre bolts
4 x stainless K6S M6x10 millimetre bolts
2 x stainless K6S M6x12 millimetre bolts
2 x M6 stainless washers
Fits:
Volvo 200 series with 4-cylinder Redblock 8V / 16V
Volvo 700 series with 4-cylinder Redblock 8V / 16V
Volvo 900 series with 4-cylinder Redblock 8V / 16V
Volvo B23 / B230 Redblock engines
