Oil Catch Tank System Kit for EA888 2.0 TSI / TFSI – Audi / VW / VAG CCTA / CBFA

This Oil Catch Tank System Kit is developed for EA888 Gen 1 and Gen 2 2.0 TFSI engines with engine codes CCTA and CBFA. The kit is a complete solution for those who want to bypass the original PCV system while keeping the intake system cleaner over time. It is especially relevant on turbo engines, where blow-by gases often carry oil, fuel vapour, and condensation back through the intake system.

The system is designed as a recirculating solution, meaning it maintains a closed system while still supporting emissions-related function. At the same time, the catch tank captures the oil mist and vapours that would otherwise be routed back into the engine and potentially contribute to deposits in the intake and on the intake valves. The result is more controlled crankcase ventilation and better conditions for stable long-term engine performance.

On turbocharged engines, the original PCV system can draw a noticeable amount of oil into the intake. With this kit, unwanted vapours and fluids are separated and collected in the tank instead, where they can later be drained. This helps reduce oil contamination in the intake system and can be beneficial for both standard engines and upgraded setups.

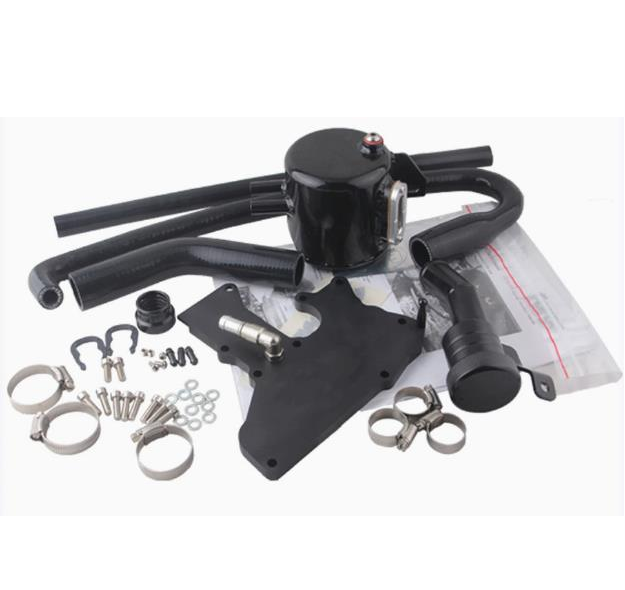

The kit is among the most complete solutions of its type and includes the necessary parts for a well-thought-out installation. The catch tank is made from hand-fabricated aluminium and combined with a maintenance-free baffle design that effectively helps separate oil and vapours. The kit includes a CNC-machined billet aluminium PCV bypass plate, manifold cap with multiple vacuum/boost reference ports, oil-resistant moulded hoses with fluorosilicone lining, stainless hose clamps, and mounting brackets and hardware.

The large tank capacity, sight glass, and drain plug make the system practical to use, while the black powder-coated finish and hard-anodised components provide a durable and attractive finish. The kit is also designed for easy bolt-on installation and compatibility with aftermarket engine mounts and most TSI-specific aftermarket intake systems.

Fits
EA888 2.0 TFSI / TSI Gen 1 and Gen 2
Engine codes: CCTA, CBFA
Also fits MK6 Golf without xenon headlights
Does not fit Audi S3 from 2009 onwards with xenon headlights

Specifications
Type: Recirculating oil catch tank system
Tank material: Hand-fabricated aluminium
PCV solution: CNC-machined billet aluminium bypass plate
Surface finish: Black powder-coated tank and bracket
Finish on selected parts: Hard-anodised plate and manifold cap
Tank feature: Built-in sight glass
Drainage: Drain plug with crush washer
Hoses: Oil-resistant moulded hoses with fluorosilicone lining
Hose clamps: Stainless steel
Installation: Direct bolt-on
Extra: Boost gauge adapter included
Compatibility: Works with aftermarket engine mounts and most TSI aftermarket intake systems
Version: Complete kit for 2.0 TFSI with carbon filter
