PDM8 Motorsport Keypad & Relay Module is a modern and user-friendly solution for anyone who wants to replace traditional fuses, relays, buttons, and switches with a more compact and professional electrical system. The kit combines a digital power distribution unit with a weather-protected CAN keypad, giving you full control over the vehicle’s electrical functions in one complete solution.
PDM8 and KEY8 are suitable for many different applications and can be used in everything from motorsport cars and road cars to boats, machinery, ATVs, snowmobiles, jet skis, and motorhomes. The system makes it possible to control a wide range of functions such as fuel pump, starter motor, cooling fan, cabin fan, ECU, lighting, windscreen wipers, water pump, boost control, and much more. This provides a cleaner electrical setup and a far more modern solution than a traditional fuse and relay box.
PDM8 is a compact and programmable relay and fuse box with 8 outputs that can be set individually as needed. Each output can be programmed for functions such as on/off, momentary, pulse, strobe, or indicators / hazard lights. The built-in circuit alarm with indicator on each output provides extra safety and makes it easier to monitor the system.
KEY8 is a waterproof and programmable CAN keypad that works together with PDM8 and replaces traditional buttons and switches. With interchangeable buttons and multiple colour options, the keypad can be adapted precisely to your project. This makes the system ideal for both motorsport and custom-built vehicles where a clean, simple, and professional installation is required.
PDM8 + KEY8 is a strong combination of price, function, ease of use, and durability. Installation is simple, and the system is designed to handle demanding environments where vibrations, moisture, and dust place high demands on the components.
Specifications
Number of outputs: 8 programmable outputs
Output configuration: 2x5A, 2x10A, 2x20A, 2x30A
Button colours: Red, purple, blue, white, green, orange, yellow
Communication: CAN between PDM8 and KEY8
Safety: Circuit alarm with indicator on each output
Voltage: 12/24 Volt (8-32V)
Max. current: 60A
Shock resistant: Yes
Operating temperature: -40 to +90 degrees
Classification: IP68
Protection: Dustproof and waterproof

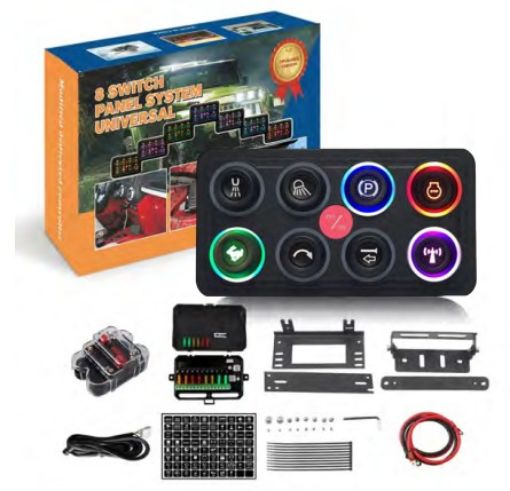

Included
1x Digital fuse box PDM8
1x Keypad KEY8
1x Mounting bracket
1x 2 metre cable for KEY8
1x Red power cable for PDM8 approx. 63 cm
1x Red power cable for PDM8 approx. 28 cm
1x Black power cable for PDM8 approx. 63 cm
1x Circuit breaker
1x Set with approx. 50 icons for KEY8
1x Set of screws, nuts, and fuses
Clear installation guide
