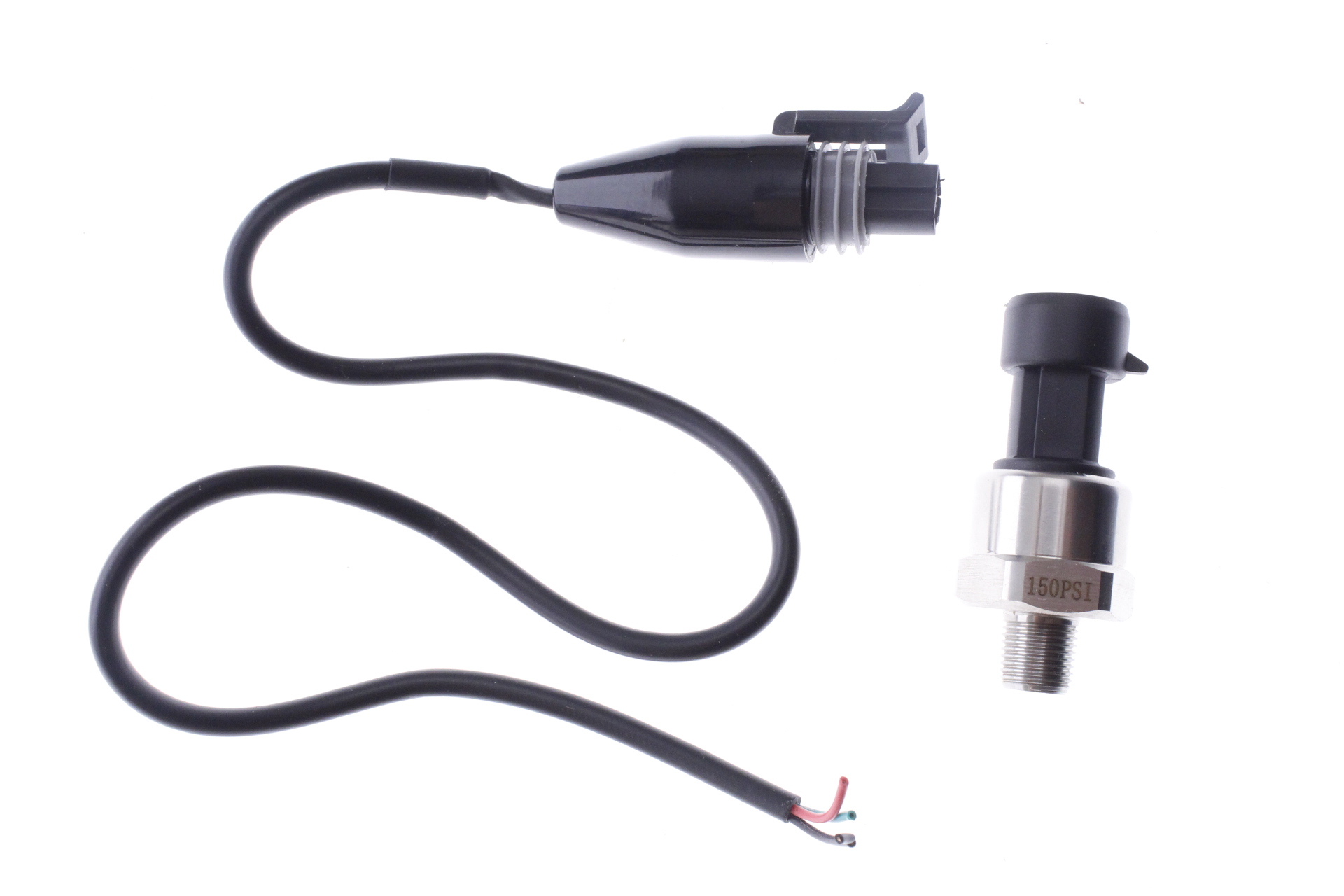

Digital pressure sensor for engine management, suitable for measuring oil pressure, petrol pressure, diesel pressure and air pressure. The sensor measures up to 150 PSI / 10.3 bar and is suitable for use with aftermarket engine management systems where an analogue 0-5V pressure signal is required.
The sensor can be used with VEMS, ECUMASTER EMU, Megasquirt, MaxxECU and other engine management systems with a 0-5V sensor input. The compact design and common 1/8-27" NPT thread make it easy to integrate into many different oil, fuel and air pressure setups.
This is a low cost version with the same electrical specifications and measuring range as the standard model. The difference is that this version is supplied with a simpler connector, which does not have the same robust quality as the more expensive version.
Note:
The sensor must not be used for water or coolant.
Specifications
Type: Digital pressure sensor
Measuring range: 0-150 PSI / 0-10.3 bar
Signal: 0-5V
Thread: 1/8-27 NPT
Application: Oil pressure, fuel pressure and air pressure
Not suitable for: Water and coolant
Red wire connection: +5V
Black wire connection: Ground
Yellow wire connection: Signal / 0-5V
