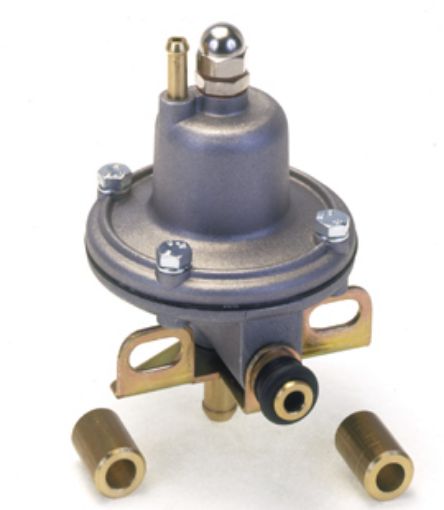

This progressive fuel pressure regulator is designed for turbocharged engines where the original fuel pressure regulator is replaced with a unit that increases fuel pressure more aggressively under boost. The regulator mounts directly to the fuel rail, making it a simple upgrade for the original fuel system.
The regulator operates with a progressive 2:1 ratio, meaning fuel pressure increases by approximately 2 bar for every 1 bar of boost pressure. This provides additional fuel under boost and can be an effective solution for engines that continue to use the original fuel pump and injectors.
The integrated vacuum/boost reference allows the regulator to respond directly to manifold pressure. The design provides stable operation and fast response to changing engine loads, making it suitable for both performance and motorsport applications.
The regulator mounts directly to compatible fuel rails and requires no external return line or mounting bracket, resulting in a simple, compact, and space-saving installation.
Specifications:
Type: Progressive fuel pressure regulator
Mounting: Direct to fuel rail
Ratio: 2:1 (2 bar fuel pressure per 1 bar boost pressure)
Reference: Vacuum/boost
Application: Turbocharged gasoline engines
Fuel: Gasoline
Fits:
BMW E23 735i M30 3.4L
BMW E24 635CSi M30 3.4L
BMW E24 M6 S38 3.5L
BMW E28 535i M30 3.4L
BMW E28 M5 S38 3.5L
BMW E30 318i M10 1.8L
BMW E30 318i M42 1.8L
BMW E30 325 M20 2.7L
BMW E30 325i M20 2.5L
BMW E30 325ix M20 2.5L
BMW E30 M3 S14 2.3L
BMW E32 735i M30 3.4L
BMW E32 735iL M30 3.4L
BMW E34 525i M20 2.5L
BMW E34 525i M50 2.5L
BMW E34 530i M60 3.0L
BMW E34 535i M30 3.4L
BMW E34 M5 S38 3.5L
