This V-band adapter is CNC-machined from solid 304S stainless steel and engineered for high load and precise fit in turbocharger setups where both strength and compact design are critical. The super-compact construction with a total height of just 1" makes it ideal for tight engine bays without compromising flow or durability.

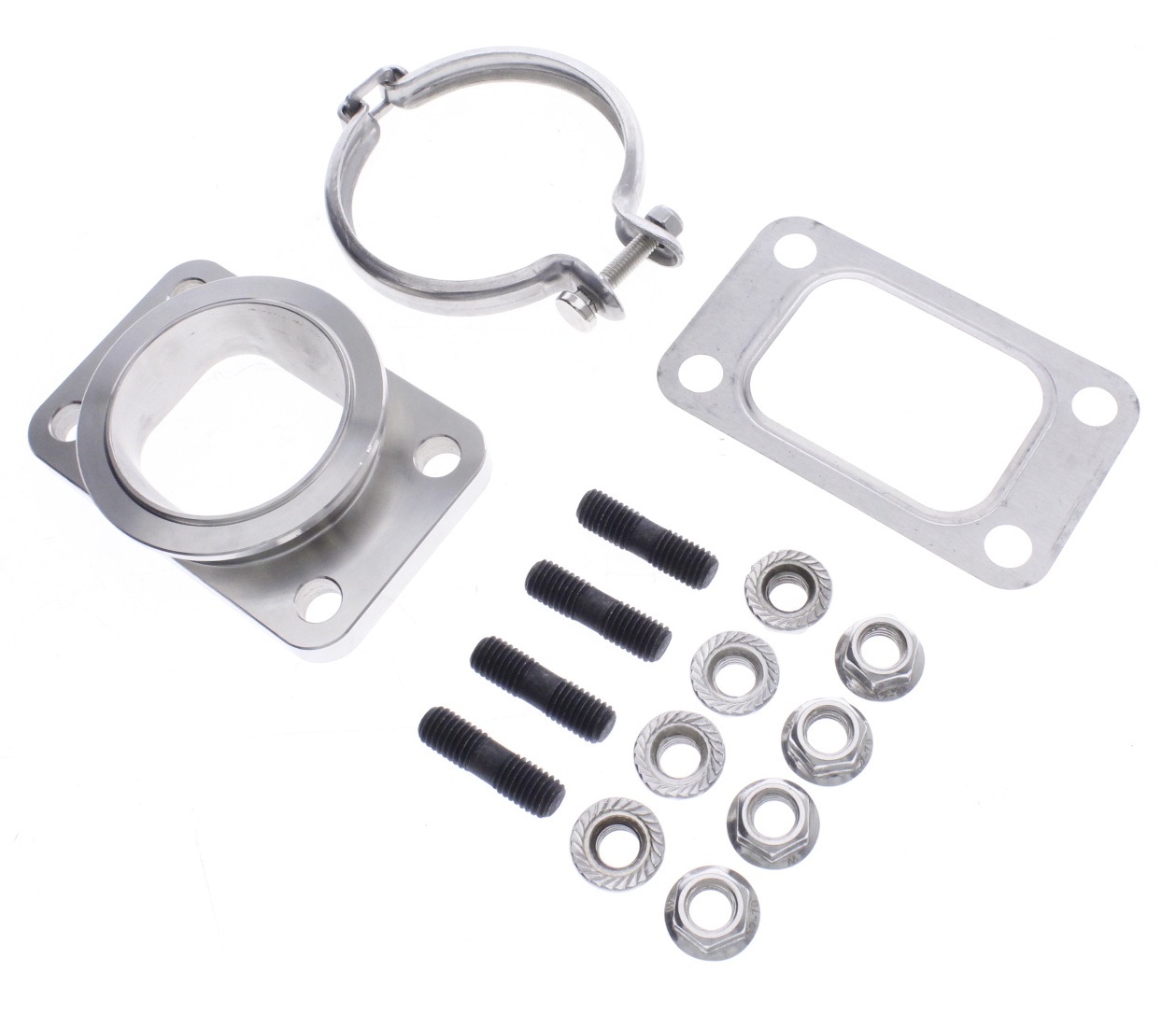

The adapter is designed to perfectly match the turbine housing inlet (fire ring) as well as a standard T3 flange, both internally and externally, ensuring optimal sealing and straightforward installation. Supplied as a complete installation kit including bolts, gasket, clamp, and a self-locking nut, allowing direct installation without additional parts.
Specifications
Material: CNC-machined 304S stainless steel
Design: Super compact, total height 1"
Flange type: V-band to standard T3 flange
V-band flange outer diameter: 3" / 76 mm
V-band flange inner diameter: 2.25" / 57 mm
Installation: Installation kit incl. bolts, gasket, clamp, and self-locking nut
Application
Fits all Pulsar PT/X and PTG series dual V-band turbine housings
PT/X 28, 30, and 35 series
PTG 25, 30, 35 etc. including 4849G, 5449G, 5455G, 5855G, 6255G, 6262G, and 6862G
Please contact us if you require a different size or a solution tailored to a specific setup.
