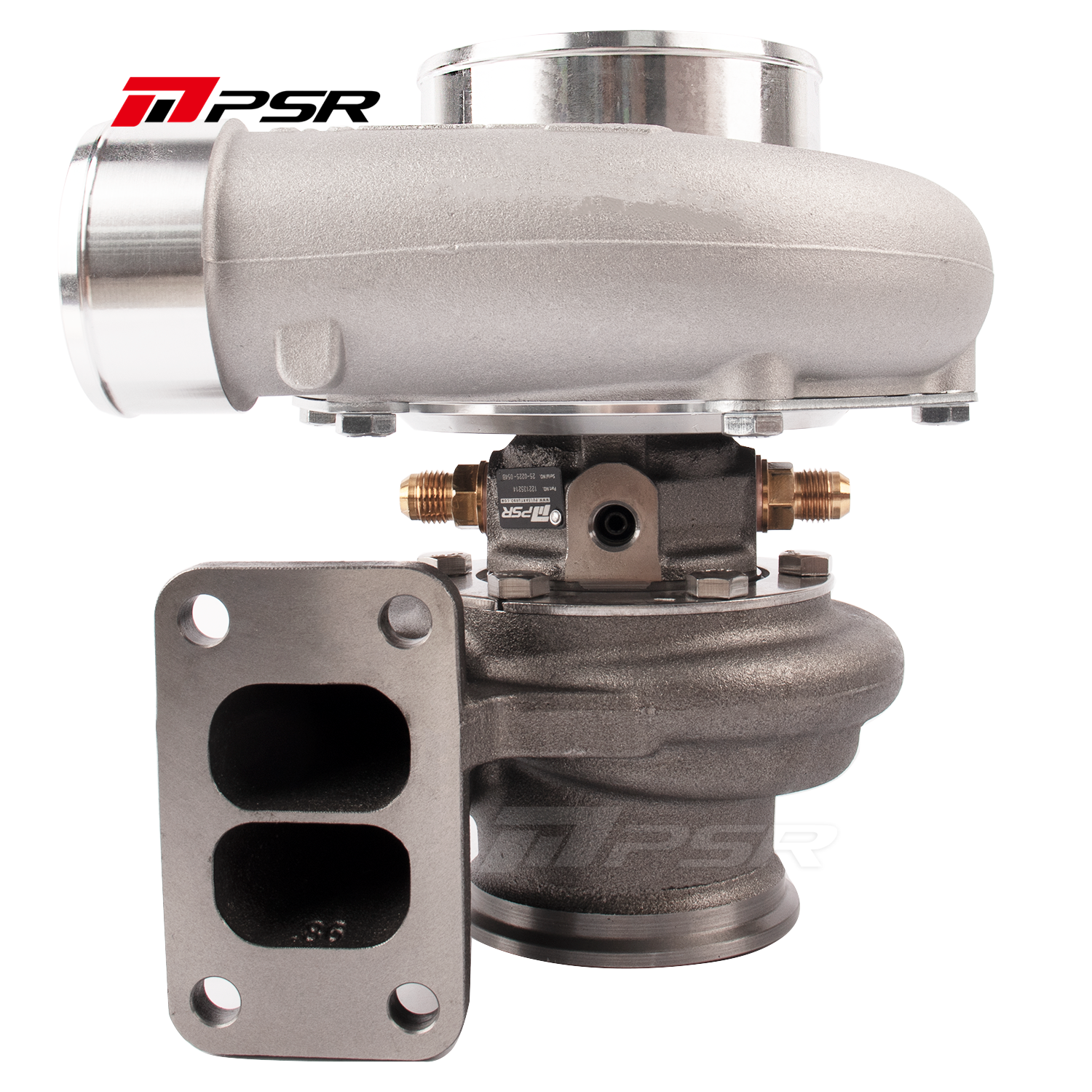

PSR3576 Gen2 Dual Ball Bearing Turbocharger
Dual Ceramic Ball Bearing System
9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
Inconel 713c 9 Blade Turbine Wheel
Gen2 Cover Integrated with the Speed Sensor Port
0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82, 1.06 A/R V-Band outlet, etc. turbine housings In option
V-Band Flange kit(s) for the exhaust housing included
Max Air Flow rate: 65 lb/min, rated @ 750 FWHP
Compressor Wheel: 58*76mm
Turbine Wheel: 68*62mm
Compressor Inlet: 4.0 Hose
Compressor Outlet: 2.0 Hose
Turbine Inlet: T3, T4, or 2.5″ V-Band
Turbine Outlet: 3″ V-Band (3.55″OD)
Oil Feed: -4 AN connect to the Oil Restrictor
Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
