Radiator EXTREME Motorsport 580x450x76 mm

Extreme radiator for motorsport

This large universal aluminium radiator is designed for motorsport applications where maximum cooling performance and reliability are essential. Its compact dimensions make it ideal for a wide range of projects, including rear-mounted cooling systems in drift, track and race cars.

The radiator measures 580x450x76 mm overall and provides a large cooling surface in a compact design. Manufactured from aluminium for excellent heat dissipation, it is ready to be integrated into your custom cooling setup.

The radiator features AN20 Female (1-5/8"-12) connections. Matching hose fittings and AN adapters are available under related products, allowing you to build the cooling system exactly as required.

A compatible overflow tank is also available under related products. When installed together with this radiator, it can function as part of the cooling system without the need for a traditional expansion tank. See the product page for more information.

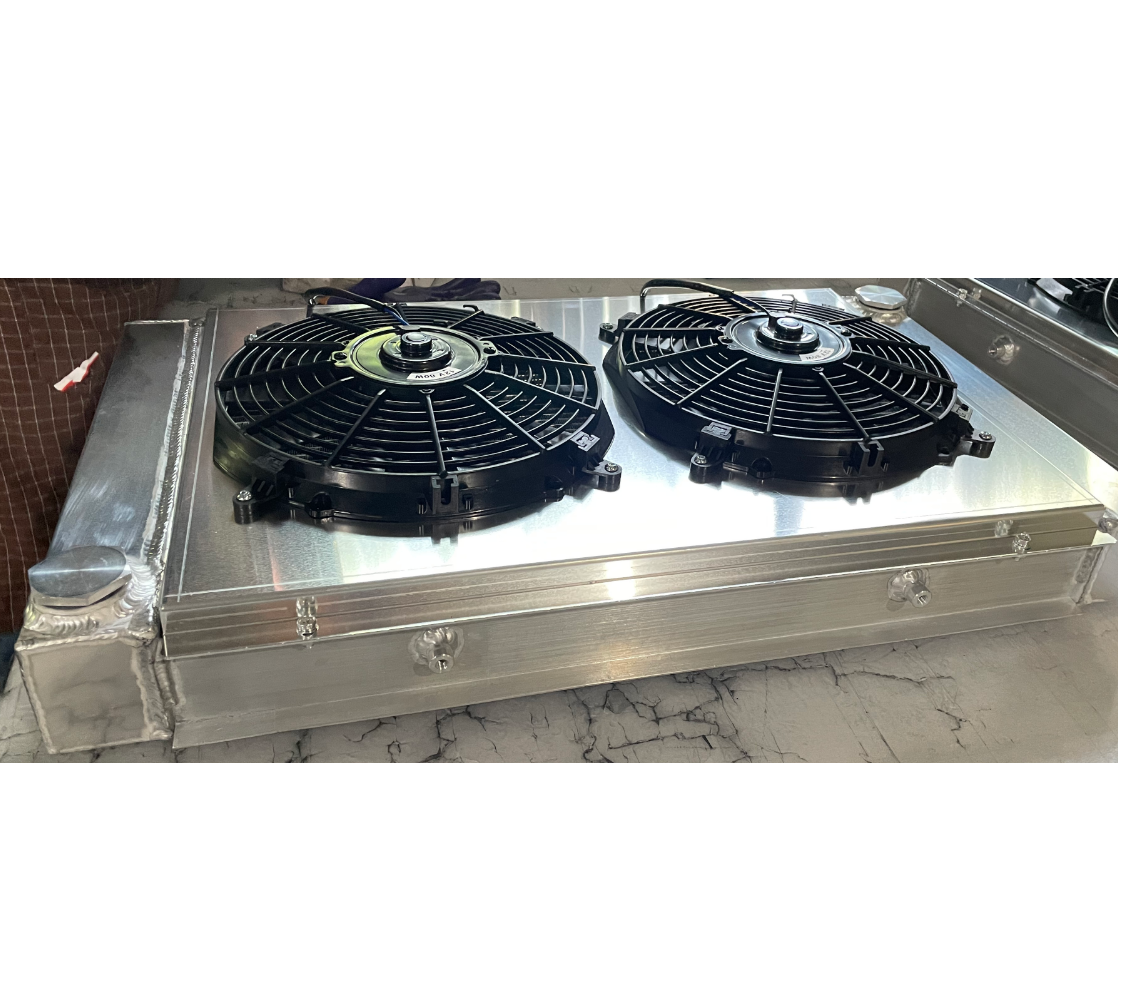

The radiator is supplied with 2 powerful 160W electric puller fans. If the radiator is mounted in the opposite direction, pusher fans are recommended, such as SPAL fans, which are known for their extremely high airflow.

Specifications

Overall dimensions: 580x450x76 mm
Material: Aluminium
Fans: 2 electric puller fans
Connections: AN20 Female (1-5/8"-12)
Application: Universal motorsport, track, rally and drift
