Radium Engineering top feed fuel rail kit for Nissan S14 and S15 with SR20DET engine. The kit is used to convert the original side feed fuel system to top feed injectors and is a relevant upgrade for tuning, larger injectors, E85, turbo and motorsport.
The fuel rail is designed for the original SR20DET S14/S15 intake manifold and provides a more flexible fuel setup than the original system. The top feed conversion makes it easier to use modern performance injectors and build a fuel system with higher flow capacity.
The fuel rail is CNC-machined from 6061 aluminium, black anodised and has 3 8AN ORB ports, giving good options for connecting AN fittings, regulator, pressure gauge or another fuel setup as needed.
The kit uses 34 millimetre tall top feed injectors with 14 millimetre O-ring at the top and bottom. The included 25 millimetre injector seats are pressed into the manifold and provide a tight and secure injector installation. Thermal insulating spacers and washers are also included, helping to reduce heat transfer from the engine to the fuel rail.
On this S14/S15 version, an IACV spacer kit, IACV gasket, IACV hose barb adapter, rubber hose, OEM clamp and stainless mounting bolts are included. This provides the required clearance for the fuel rail and makes the installation more complete when converting from the original side feed system.
Injectors and fittings are not included.
Specifications
Type: Top feed conversion fuel rail kit
Material: CNC-machined 6061 aluminium
Finish: Black anodised
Ports: 3 x -8AN ORB
Injector compatibility: 34 millimetre tall top feed injectors
O-ring size: 14 millimetre top / 14 millimetre bottom
Compatible with: Petrol and E85

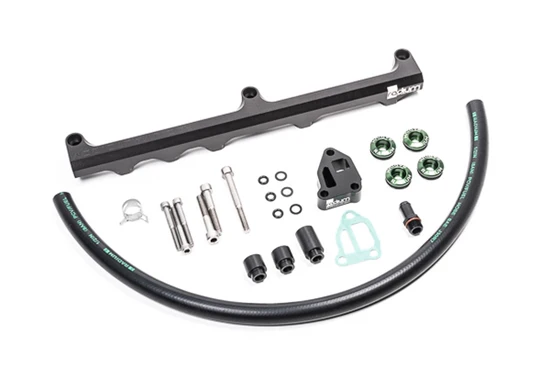

The kit includes:
Black anodised aluminium fuel rail
Thermal insulating spacers
Thermal insulating washers
Green anodised aluminium 25 millimetre injector seats
Black anodised aluminium IACV spacer
IACV gasket, SR20DET S14/S15
Black anodised aluminium IACV hose barb adapter
Rubber hose and original clamp for IACV
Stainless M8x1.25 mounting bolts
Stainless M6x1 mounting bolts
Fits:
Nissan S14 SR20DET
Nissan S15 SR20DET
