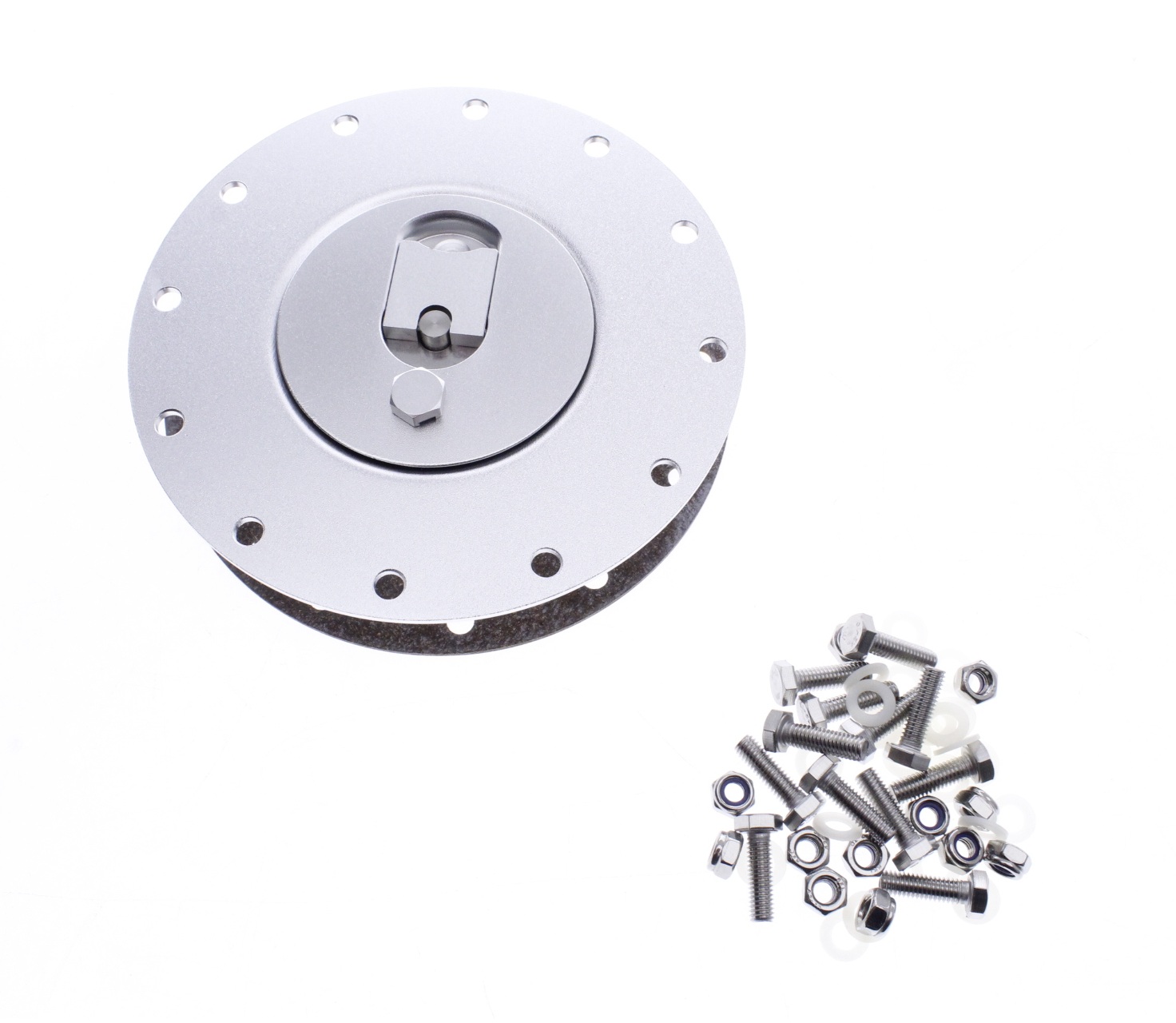

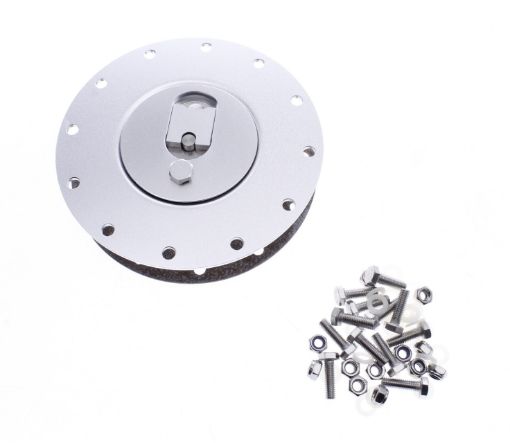

Silver aluminium fuel cap with vent screw

This round aluminium fuel cap is developed for fuel tanks, fuel cells and custom-built fuel systems where a robust and functional filler solution is required. The compact construction makes it suitable for motorsport, tuning and project cars where durability and a professional appearance are important.

The 62 millimetre filler opening makes it possible to use the fuel cap with a suitable fuel hose if remote filling or integration into a custom-built fuel system is required.

The fuel cap is equipped with a vent screw, which helps with pressure equalisation in the tank. Both gasket and mounting bolts are included, so the unit is ready for installation.

Specifications:
Type: Fuel cap with vent screw
Material: Aluminium
Colour: Silver
Mounting: Bolt-on mounting
Gasket: Cork
Bolts: Included

Measurements:
Outer flange diameter: 150 millimetres
Bolt hole circle diameter: 134 millimetres
Bolt hole diameter: 7 millimetres
Outer filler diameter: 62 millimetres
Outer cap diameter: 75 millimetres
