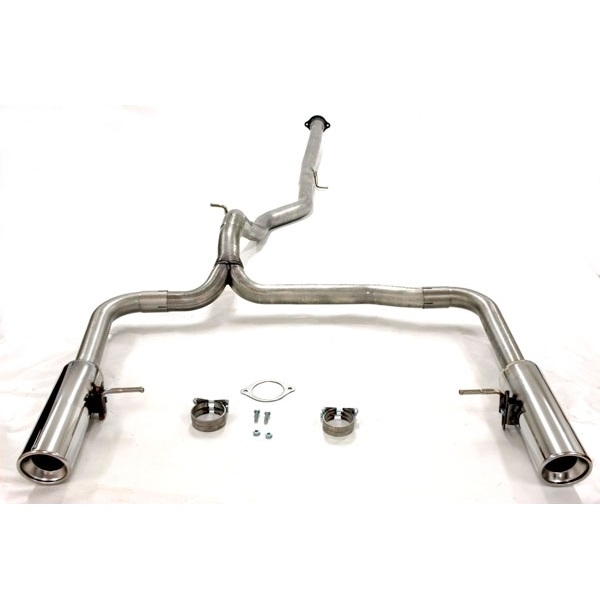

Simons catback sports exhaust for Volvo V70 II and XC70 diesel model year 2007-2016. The system is made from stainless steel and fits V70/XC70 AWD D4 and D5 as well as V70/XC70 2WD 1.6D, D2, D3, D4 and D5, depending on the car’s pipe layout. The system is a complete sports exhaust kit, mounted from the catalytic converter and rearwards.
The exhaust has 63.5 millimetre pipe diameter, which splits into 2 x 57 millimetre pipes, as well as duplex tailpipes with 100 + 100 millimetres. This gives the Volvo V70 II and XC70 a more sporty appearance, better flow and a deeper sound than a standard exhaust system. The duplex tailpipes also give the car a distinctive and symmetrical performance look from the rear.
The system is E-marked. This means that the exhaust is type-approved according to European requirements and can be used for road use where the car’s remaining setup and local regulations allow it.
Note:
The system is only for cars with particulate filter. For 2WD, the system only fits cars with pipe layout as shown in image 2. For 1.6D, adapter 02D-90R is required. For cars with only one cut-out on the left side, the diffuser must be adapted or replaced, and right-side hanger 02DDFRS must be purchased separately.
Specifications:
Type: Catback sports exhaust
Material: Stainless steel
Pipe diameter: 63.5 millimetres + 2 x 57 millimetres
Tailpipes: Duplex 100 + 100 millimetres
Drivetrain: 2WD / AWD
Mounting: From catalytic converter and rearwards
EC-type: E2DDH5
Part number: 02DDH81R
Fits:
Volvo V70 II 2WD 1.6D 2007-2016
Volvo V70 II 2WD D2 2007-2016
Volvo V70 II 2WD D3 2007-2016
Volvo V70 II 2WD D4 2007-2016
Volvo V70 II 2WD D5 2007-2016
Volvo XC70 AWD D4 2007-2016
Volvo XC70 AWD D5 2007-2016
Volvo V70 AWD D4 2007-2016
Volvo V70 AWD D5 2007-2016
Only for cars with particulate filter.
Also fits R-Design and cars with cut-outs in the diffuser.
For 2WD, pipe layout as shown in image 2 is required.
For 1.6D, adapter 02D-90R is required.
For cars with only a left-side cut-out, adaptation/replacement of the diffuser and hanger 02DDFRS are required.
