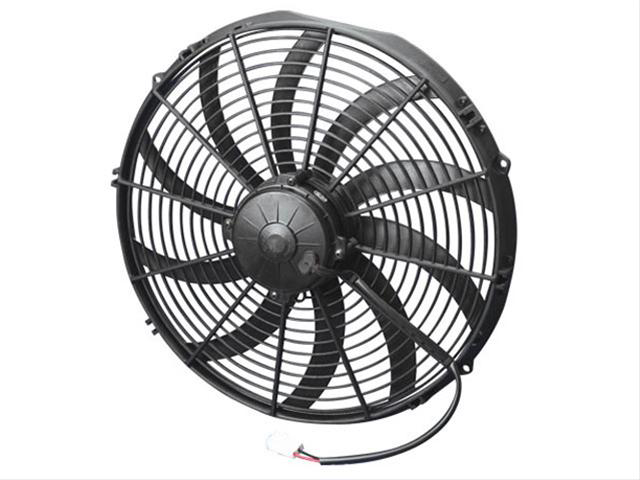

SPAL 16" motorsport cooling fan – puller – 2601 CFM
This SPAL 16" motorsport cooling fan is a powerful puller fan for demanding cooling systems where high airflow and stable temperature control are required. It is ideal for motorsport, trackday cars, tuning projects, turbo builds and custom vehicles where the original cooling solution is no longer sufficient.
The fan is a puller model, meaning it is mounted behind the radiator and pulls air efficiently through the cooling core. This solution provides better use of the radiator and is especially suitable for setups with limited space in front of the radiator.
SPAL is known for high quality and reliability in electric cooling fans, and this model is developed for motorsport use where high performance and dependability are essential. The powerful motor combined with an optimised blade design ensures high airflow, helping to keep engine temperature stable even under heavy load.
Specifications
Model: VA18-AP70/LL/F-59A
SPAL part no.: 30102113
Type: Puller
Voltage: 12V
Size: 16"
Diameter: approx. 405–406 mm
Airflow: 2601 CFM
Max. airflow at 0 static pressure: up to 3000 CFM
Current draw: approx. 26A at 13V
Blade type: Curved blades
Weight: approx. 2.35 kg
Depth: approx. 93 mm
Motor: Non-sealed
Application: Motorsport / race use
