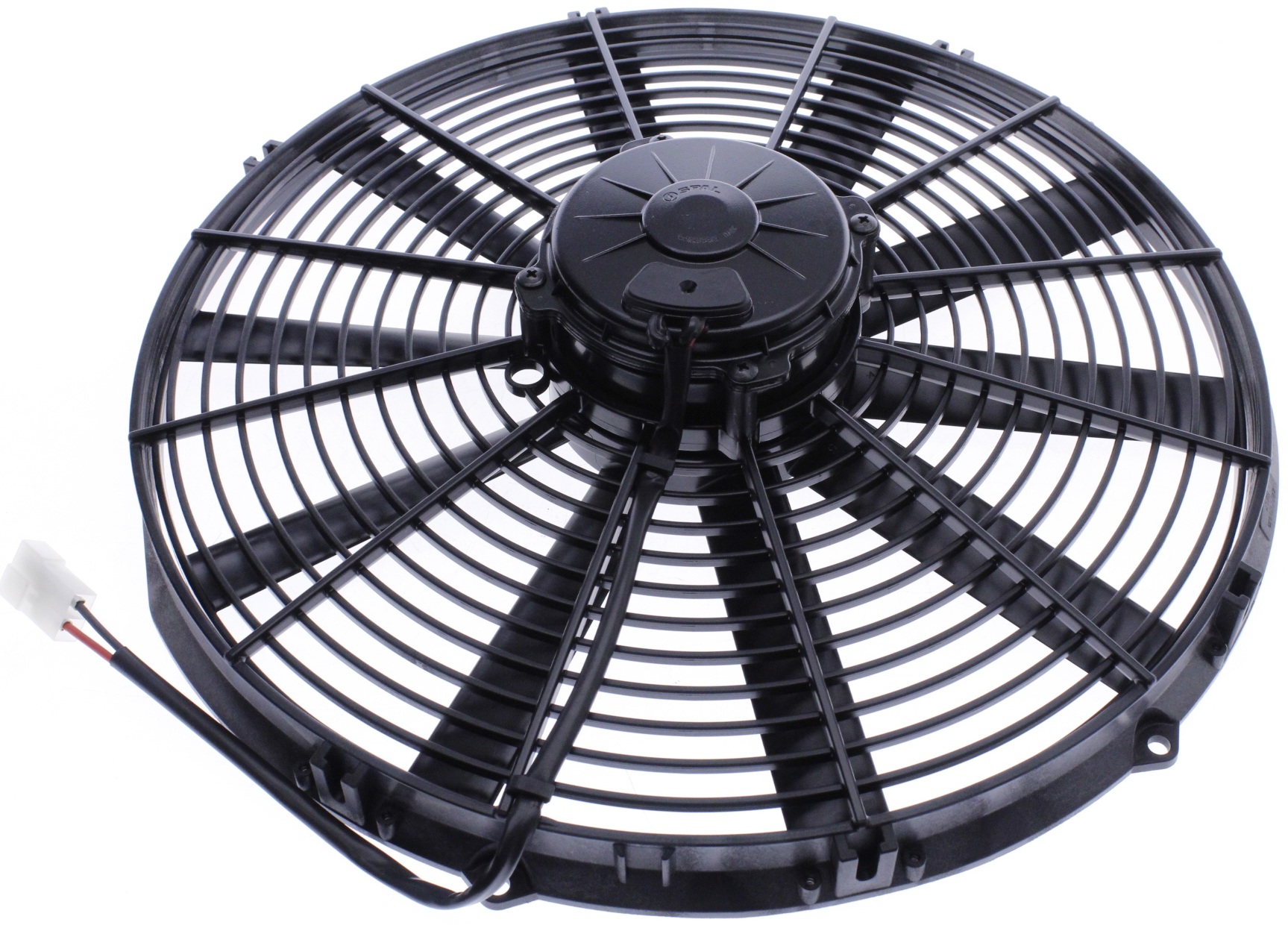

SPAL fan 24V - 16" pusher cooling fan - VA18-BP70/LL-86S

This SPAL fan is an electric 24V cooling fan for setups where stable airflow and efficient cooling are needed. The fan is a pusher model, which means it is mounted in front of the radiator or heat exchanger and pushes air through the cooling surface.

With a blade diameter of 16" / 406 mm and an airflow of up to 2089 CFM / 3540 m³/h, it is suitable for many types of cooling setups where a reliable electric fan with good capacity is required. It can, among other things, be relevant for custom builds, motorsport, industrial installations, and other 24V systems where space, cooling demand, and reliable operation play an important role.

The fan has straight blades and operates with a current draw of 8.7 amps. With a weight of 2.57 kg, this is a solid solution from SPAL, which is known for high-quality cooling fans for demanding applications.

This model is an excellent choice when you need a 24V fan for a radiator, oil cooler, or other cooling surfaces where a pusher fan is the best match for the setup.

Specifications
SPAL model: VA18-BP70/LL-86S
U.S. Part #: 30102540
Voltage: 24V
Type: Pusher fan
Blade diameter: 16" / 406 mm
Blade type: Straight blades
Weight: 2.57 kg
Current draw: 8.7 A
Airflow: 2089 CFM
Airflow: 3540 m³/h
