Surge tank for car mounting - 1.5 liters

1.5 litre surge tank for underbody mounting

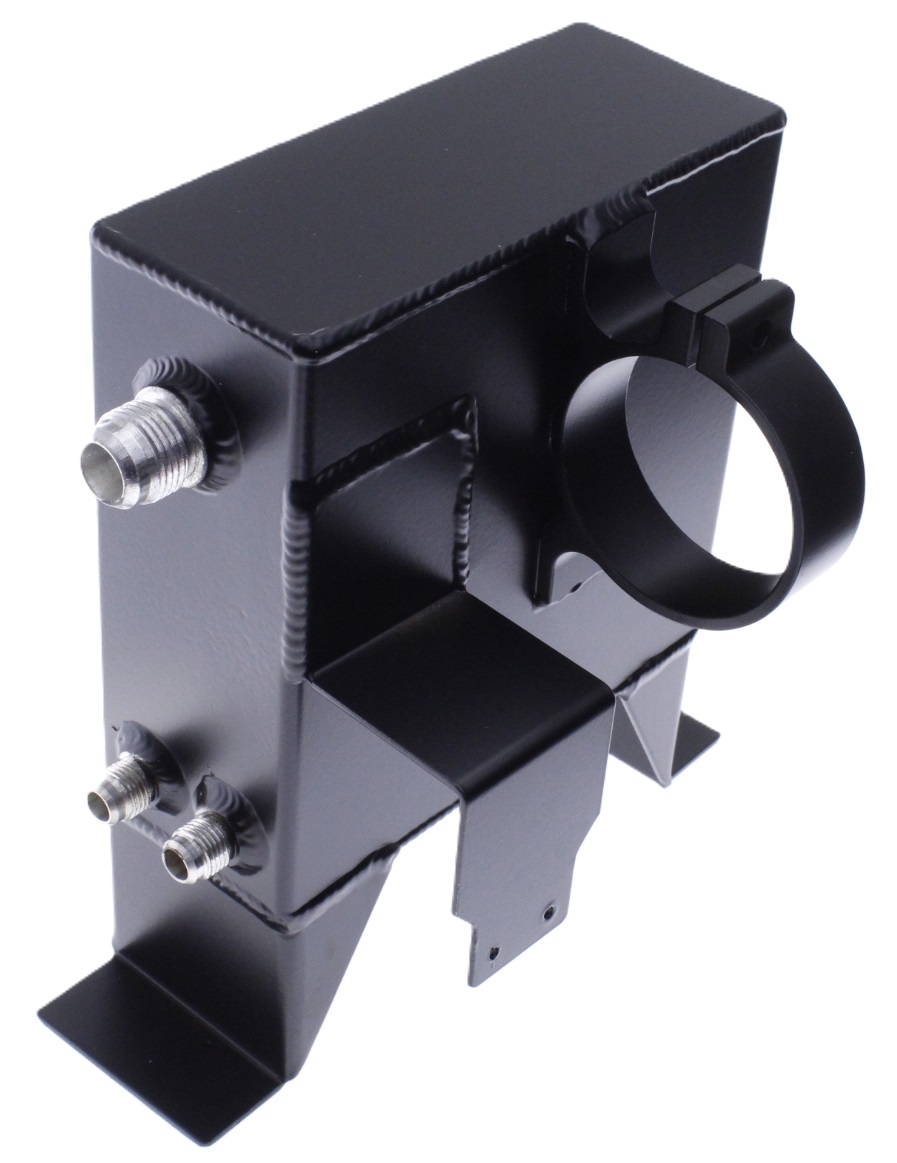

This 1.5 litre surge tank is a practical solution for fuel systems where a more stable fuel supply is needed during hard driving, motorsport, or custom-built projects. It is designed for mounting under the vehicle and is prepared for installation of 1 Bosch 044 fuel pump and 1 fuel filter as shown in the image.

A surge tank is typically used to ensure that the fuel pump always has access to fuel, even during hard acceleration, braking, or cornering where an uneven supply from the main tank can otherwise occur. This makes this solution suitable for track cars, tuned street cars, and other projects where a more stable fuel system is important.

The surge tank has 3 AN6 connections and 1 AN10 outlet for the fuel pump. When used together with PTFE hoses, it can also be used with fuels such as alcohol, methanol, and ethanol, making it relevant for more demanding setups.

Specifications
Capacity: 1.5 litres
Mounting: Under the vehicle
Space for: 1 Bosch 044 fuel pump
Space for: 1 fuel filter
Connections: 3 AN6
Fuel pump outlet: 1 AN10
Fuel types: Petrol, alcohol, methanol, and ethanol when used with PTFE hoses

Accessories required for mounting the pump and filter as shown in the image
1 fuel pump 044
1 fuel filter
1 M18x1.5 to AN10 male
1 aluminium sealing washer M18
2 AN10 to 7/8"-14 UNF nipples
1 straight AN10 fitting
1 90 degree AN10 fitting
2 150 degree AN10 fittings
Hose from tank to filter approx. 28 cm
Hose from pump to filter approx. 7 cm
Hoses are sold in minimum lengths of 1 metre

Note
Dimensions are shown in the image above.
AN fittings are sold separately.
AN10 and AN6 connections must be purchased separately.
