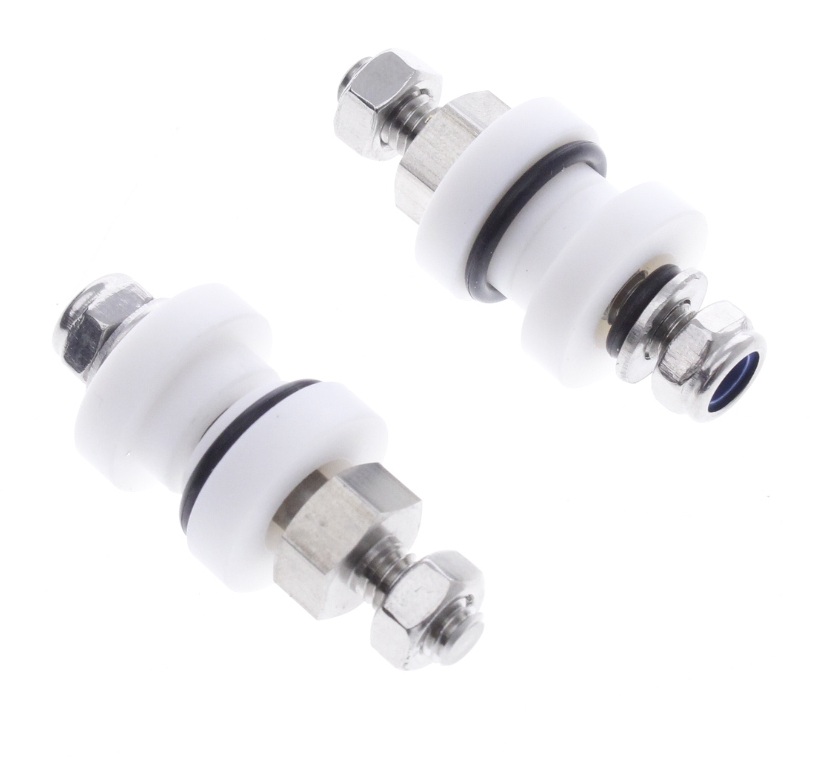

Terminal fitting for + and – to fuel tank

This high-quality stainless steel through-feed enables safe and efficient connection of + and – power to fuel pumps or other electrical devices located inside the tank or through a bulkhead/firewall. It is ideal for custom fuel cells, catch tanks or trunk-installations. Made via CNC machining in stainless steel, the product includes Viton and PTFE seals to ensure tight sealing and resistance to chemicals and high temperatures.

Specifications
Length: 45 mm
Diameter: 5 mm
Mounting hole: Ø 14 mm
Sink-in depth in tank: 29 mm
Projection from tank: 11 mm
Bolt size: M5
Max outer diameter on spacers: 20 mm
Seals: Viton & PTFE
Material: CNC stainless steel
Maximum current: 60 A
