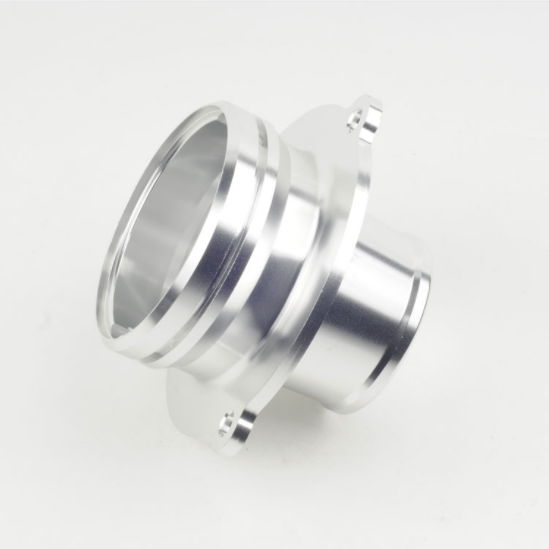

K04 turbo outlet flange for hose connection – 51 mm
This K04 outlet flange is developed for the BorgWarner K04-064 turbocharger and is used as a replacement for the original silencer at the compressor outlet. The flange is made from aluminium and allows connection to a 51 mm hose, making the setup more pressure-stable than the original click connection. This makes it well suited for upgraded setups and custom intercooler piping systems.
A K04 silencer replacement flange is often used on 2.0 TSI/TFSI EA113 engines where improved flow, a stronger connection and the option to build a custom boost pipe system are desired. It can also provide a more noticeable turbo spool sound and faster response. It replaces the original OEM click connection (OE 06H131111), which can be a weak point on the standard setup.
Fits the following models, among others:
AUDI A3 / S3 (8P) 2.0 TFSI
AUDI TT / TTS (8J) 2.0 TFSI
SEAT Leon (1P) Cupra R 2.0 TFSI
VW Golf 5 GTI Edition 30 2.0 TFSI
VW Golf 6 GTI Edition 35 2.0 TFSI
VW Golf 6 R 2.0 TFSI
VW Scirocco R 2.0 TFSI
Specifications
Fits BorgWarner 5304-988-0064 turbocharger
Made from high-strength aluminium
Plug & Play installation
Replaces the original OE silencer
Optimises flow from the turbocharger compressor outlet
Inside diameter: 44 mm
Hose connection: 51 mm
Total height: 70 mm
