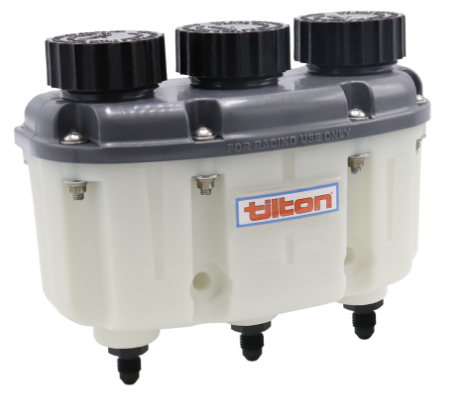

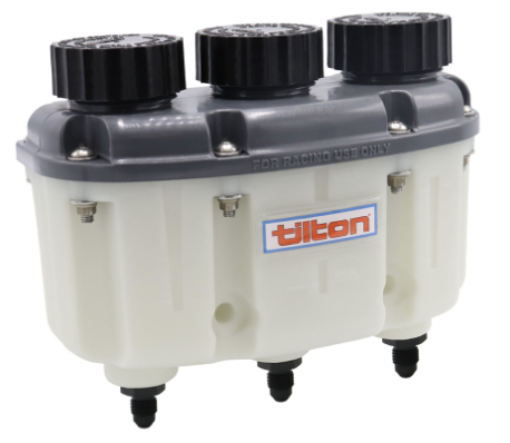

The Tilton 3-chamber plastic reservoir is a proven and cost-effective solution that combines the function of three separate fluid reservoirs into one compact unit. It incorporates many of the same technical features found in Tilton’s billet aluminum version, but in a more budget-friendly plastic design. The result is a compact, practical, and reliable solution that reduces installation space and complexity without compromising performance.
The three internal chambers are fully isolated, allowing one chamber to be completely emptied without affecting the remaining two. The fiberglass-reinforced nylon construction provides high strength with low weight, while the leak-proof baffle design ensures fluid stability even under demanding conditions. The gasket-sealed removable lid allows for easy cleaning, and integrated screens prevent foreign objects such as nuts or bolts from entering the reservoir.
Clear fluid level indicator windows allow for quick visual inspection, and the integrated 2-hole mounting design enables simple installation on a firewall or bulkhead. Supplied with AN-4 connections, this reservoir is ideal for professional motorsport and performance applications.
Specifications
Material Fiberglass-reinforced nylon
Chambers Three separate internal reservoirs
Lid Removable gasket-sealed lid with integrated screens
Design Leak-proof baffle system
Level indication Integrated fluid level windows
Mounting 2-hole firewall or bulkhead mounting
Connections AN-4
Hose requirement PTFE, EPDM, or SBR hose must be used
Please contact us if you require a different solution or size.
