Toyota 2JZ-GTE turbo manifold - T4 split - 3mm. High Quality

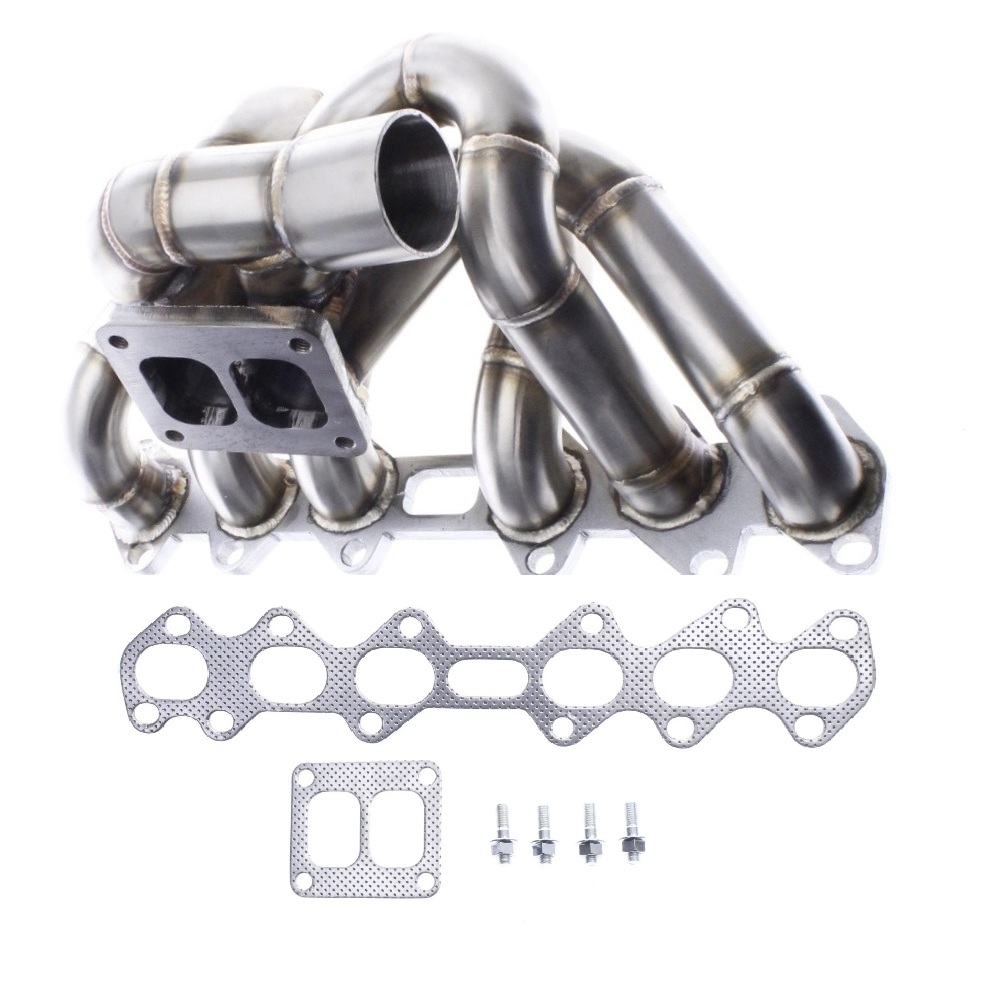

Stainless high performance turbo manifold for Toyota 2JZ-GTE – T4 Twin Scroll

Unlock the full potential of your Toyota 2JZ-GTE engine with this high performance turbo manifold made from stainless 304 steel. Designed for fast spool, strong torque, and maximum flow at high RPM, it’s perfect for motorsport, drift, and high-performance street builds, where strength and reliability are key.

The manifold is made with a T4 Twin Scroll flange. Both flanges are machined perfectly flat, ensuring optimal sealing between the cylinder head and turbocharger. The 11.5 mm thick head flange provides excellent strength and stability throughout the entire construction. Built from 3 mm thick stainless steel tubing, this manifold can handle extreme heat and pressure without cracking – a common issue with thinner, cheaper manifolds.

The wastegate pipe has a generous 52 mm diameter, allowing you to fit large wastegates such as Turbosmart 50 mm or 60 mm, or our own Gold Line wastegates.

This manifold is built for power, precision, and durability – engineered to deliver uncompromising performance whether on the track, in drift, or on the street.

Specifications
Material: Stainless steel 304
Wall thickness: 3 mm
Turbo flange: T4 Twin Scroll
Head flange: 11.5 mm, planed
Wastegate pipe: 52 mm (fits 50–60 mm wastegate)
Fitment: Toyota 2JZ-GTE engine
Use: Motorsport, drift, tuning, and high-performance street cars
