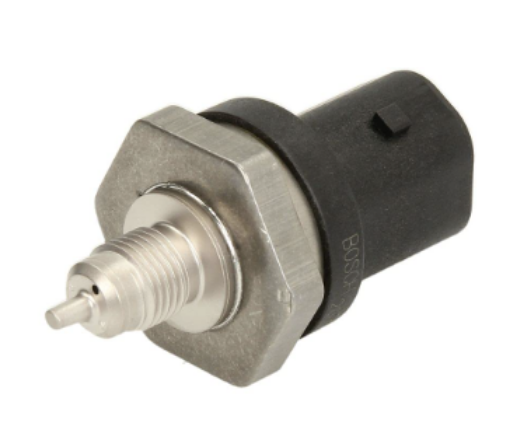

Pressure and temperature sensor (10 bar / 140°)

Motorsport Sensor

This sensor is our own model, thoroughly tested by us. It works reliably under all normal conditions, and we have sold many without a single complaint. You can confidently choose this model – it offers the same functionality as the Bosch original at a more attractive price.

Measures both pressure and temperature Thread: M10x1.0 / 1/8"-27 NPT

Bosch spare part number: 0261230340 / 0 261 230 340

Alternative Bosch no. 0261230482

PIN connection:

Pin 2: pressure signal out (0.5V = 0 bar, 4.5V = 10 bar)
Pin 3: +5V sensor supply
Pin 4: sensor GND
Pin 5: temperature signal out (0.5V = -40 °C, 4.5V = 140 °C)
NOTE: Use the number printed on the sensor – NOT the number from the connector!

Diesel, Petrol, Ethanol, Water, Engine oil, Transmission oil
(Note: shorter lifespan with ethanol)
