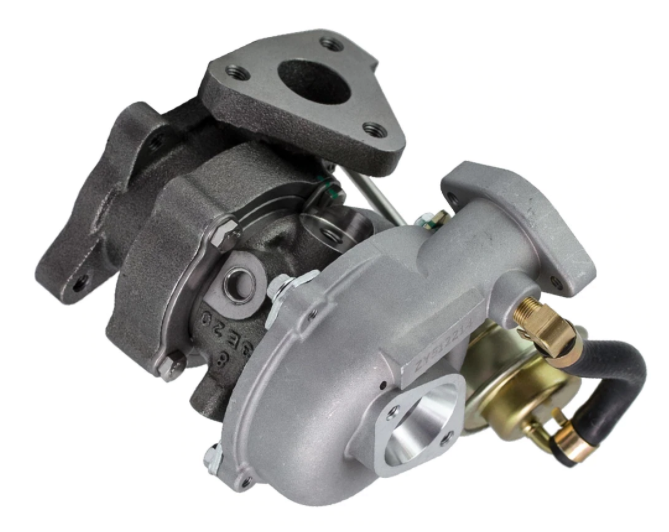

This Turbo – 70 hp is designed for small engine setups where a simple and functional boost solution is required without complex adjustments. The turbo fits engines from 0.1 to 0.6 liters and is sized for applications where space and stable operation are more important than extreme power output.
The turbo is supplied complete with wastegate and actuator, making it ready for installation without the need for additional components. The base boost pressure is fixed at 0.7 bar, providing a sensible load on the engine and reducing the risk of overboost on small engines.
The outlet flange has 32 mm between the bolt holes and is suitable for compact exhaust setups. This turbo is typically used on ATVs and buggies, where it delivers a noticeable increase in torque without unnecessarily complicating the setup.
Specifications
Maximum output approx. 70 hp
Engine displacement 0.1 – 0.6 liters
Fixed base boost pressure 0.7 bar
Includes wastegate and actuator
Outlet flange 32 mm between holes
Application ATV and buggy
Gasket sets for this turbo can be found under Related products.
