VAG 1.4L TSI/2L TFSI(CCTA)/2.5LTTRS Standard Size High Performance Rod Bearing Set

SKU: 4B5562H-STD

Availability Available on order

€100.35
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

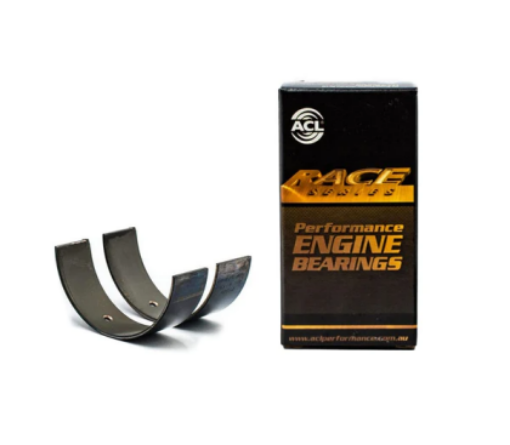

ACL Connecting Rod Bearings – 4B5562H (STD)

ACL bearings are designed for tuning and performance engine upgrades, providing superior quality and load capacity compared to standard bearings. They ensure consistent oil control, low friction, and reliable operation under extreme conditions.

The advanced design includes improved material composition, optimized wall thickness, enhanced heat transfer, and precision oil grooves and distribution. These features make ACL one of the leading manufacturers of performance engine bearings.

Specifications
Part number: 4B5562H
Bearing size: STD
Bearing type: Identical halves
Bearing material: F781

Technical data (mm)
Overall length: 17.4
Shaft size: 47.758 – 47.778
Tunnel size: 50.6 – 50.619
Vertical oil clearance: 0.014 – 0.069
Wall at crown: 1.405

Technical data (inches)
Overall length: 0.685
Shaft size: 1.8802 – 1.881
Tunnel size: 1.9921 – 1.9929
Vertical oil clearance: 0.0006 – 0.0027
Wall at crown: 0.0553

Fits
Audi and Volkswagen 1.8T and 2.0T TSI/TFSI engines (EA888 Gen 1–3) and selected 2.5L 5-cylinder EA855 engines.

Fits engine code

BYT / BZB / CABA / CABB / CADA / CAEA / CAEB / CAED / CAWB / CBFA / CCTA / CCZA / CCZC / CDAA / CDHA / CDHB / CDNB / CDNC / CEPA / CEPB / CESA / CETA / CFKA / CHHB / CHHC / CHJA / CJEB / CJED / CJEE / CJSA / CJSB / CJXB / CJXC / CJXD / CJXF / CJXG / CNCB / CNCD / CNCE / CNSB / CPMA / CPMB / CPSA / CTSA / CULB / CULC / CWZA / CYFB / CYGA / CYMC / CYNB / CYPA / CYPB / CYRB / CYRC / CZGA / CZGB / DAXB / DAXC / DAYB / DAZA / DJHA / DJHB / DJYA / DKTB / DLRA / DMFA / DNUE / DNUF / DNWA / CAWA / CCTB / CCZB / CCZD / CDAB / CDND / CEA / CFPA / CGYA / CHHA / CJKA / CJKB / CJSC / CJXA / CJXE / CNSA / CPKA / CPLA / CPPA / CPRA / CULA / CXBA / CXBB / CXCA / CXCB / CXDA / DAJA / DAJB / DCGA / DEDA / DJHC / DJJA / DLBA / DLRB / DNUA / DNUC / DRFA

Keywords
ACL bearings, performance engine bearings, tuning bearings, VW Audi 2.0 TFSI, EA888 bearings, connecting rod bearings, high-performance bearings

*
*
*
