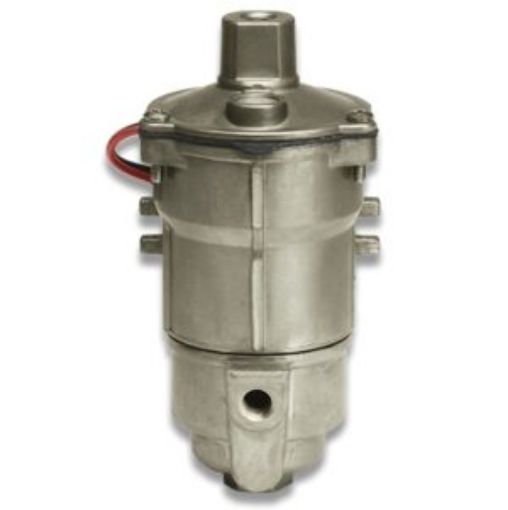

Walbro FRB-16 Reciprocating Fuel Pump

Walbro FRB-16 Reciprocating Fuel Pump is a durable and reliable electric fuel pump designed for demanding industrial and vehicle-related applications where consistent fuel delivery and long service life are essential. The pump is engineered for 24V systems and delivers a steady flow rate even under varying load conditions. With high chemical resistance and compatibility with gasoline, diesel, biodiesel, and E85, the FRB-16 is suitable for both modern and specialized fuel systems.

The pump features an integrated magnetic trap and inlet filter for enhanced protection against particles and contaminants, contributing to its expected service life of more than 18,000 operating hours. The electrical design includes reverse polarity and transient voltage protection, making it well suited for harsh environments and professional installations.

Specifications

Voltage: 24 Volt (minimum 16.0 VDC – maximum 32.0 VDC)
Minimum flow rate: 162 liters per hour (43 GPH)
Deadhead pressure: 42–56 kPa (6.0–8.0 PSI)
Maximum current draw: 1.7 amps
Service life: >18,000 hours
Dry lift: 48 inches
Compatible fuels: Unleaded gasoline, premium gasoline, gasoline-alcohol blends, diesel, biodiesel (B20 and B100), and E85
Corrosion resistance: Passed 1,000-hour salt spray test (ASTM B-117)
Operating temperature: -40 °F to 155 °F (-40 °C to 68.3 °C)

Electrical protection: Reverse voltage and transient voltage protected
Ground: Neutral ground – circuit board is not internally grounded to the pump body
Electrical connection: Two flying leads, no connector
External ground: Required for gasoline applications (pump body to battery ground)
Recommended fuse: 5 amps

Inlet / outlet: 1/4-18 NPSF
Inlet filter: 70 micron filter screen
Magnetic trap: Yes
Outlet check valve: None

Available options:
Adjustable pressure regulator 135-631
Outlet check valve fitting 128-3220 (5/16 hose barb)
420 micron filter screen
