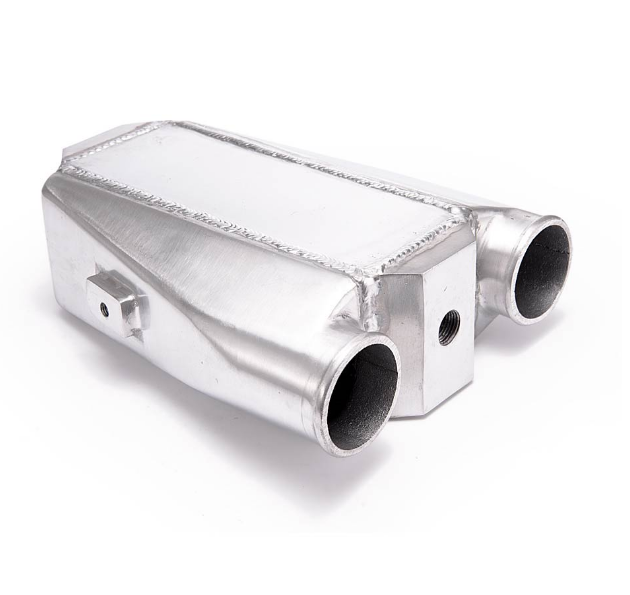

Air to Water Intercooler – Up to 370 HP
Universal intercooler that is easy to position, as it does not need to be mounted at the front of the vehicle. Manufactured with 63 mm / 2½" connections, making it suitable for a wide range of setups.
A highly efficient intercooler suitable for vehicles with aftermarket turbo or supercharger installations. It helps reduce intake temperatures and maintain stable performance under high load.
The intercooler can be used for applications up to approx. 370 HP. Actual performance depends on boost pressure and the temperature of the air entering the intercooler. The stated power rating is measured at approx. 1.3 bar boost pressure.
Max boost pressure: 4 bar
Dimensions – Water to Air Intercooler
Overall
Thickness: 90 mm
Length: 281 mm
Width: 241 mm
Core
Thickness: 85 mm
Length: 225 mm
Width: 85 mm
Water connection thread: 1/2" NPT thread
Use of AN fittings for connection is recommended.
