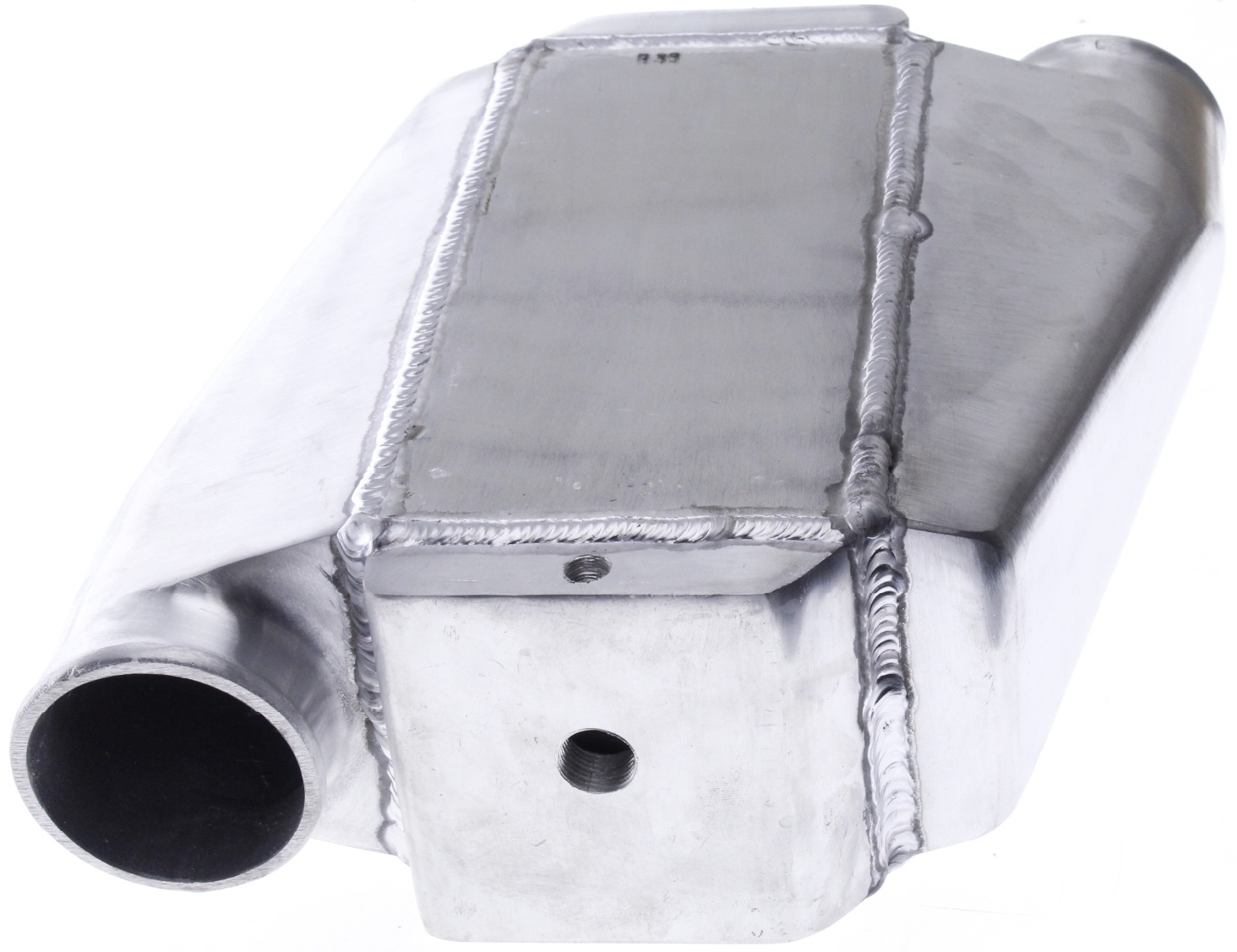

Water-to-air intercooler
This water-to-air intercooler is a compact and efficient solution for projects where there is limited space in the engine bay, but where stable and effective cooling of the charged air is still required. It is well suited for tuning, motorsport, and custom builds where a traditional front-mounted air-to-air intercooler is not an option.
One of the major advantages of a water-to-air intercooler is that it can be positioned more flexibly in the engine bay. This makes it especially suitable for cars with limited space, short pipe routing, and projects where a more compact installation is desired.
The stated power rating for the water-to-air intercooler should always be considered as a guideline, as the actual performance depends on water temperature, water flow, the capacity of the heat exchanger, and the overall design of the system. The actual result will therefore vary from car to car and from setup to setup. This intercooler is especially suitable for turbo and supercharger projects where a compact solution, flexible placement, and effective temperature control are needed, even when space in the engine bay is limited.
Specifications
Core size (L x W x H): [mm] 260 x 120 x 120
Overall length: [mm] 310
Overall width: [mm] 320
Overall height: [mm] 120
Inlet: 3"
Outlet: 3"
Water connection: 1/2" NPT
Material: Aluminium
Application: Water-to-air charge air cooling
Mounting: Universal
