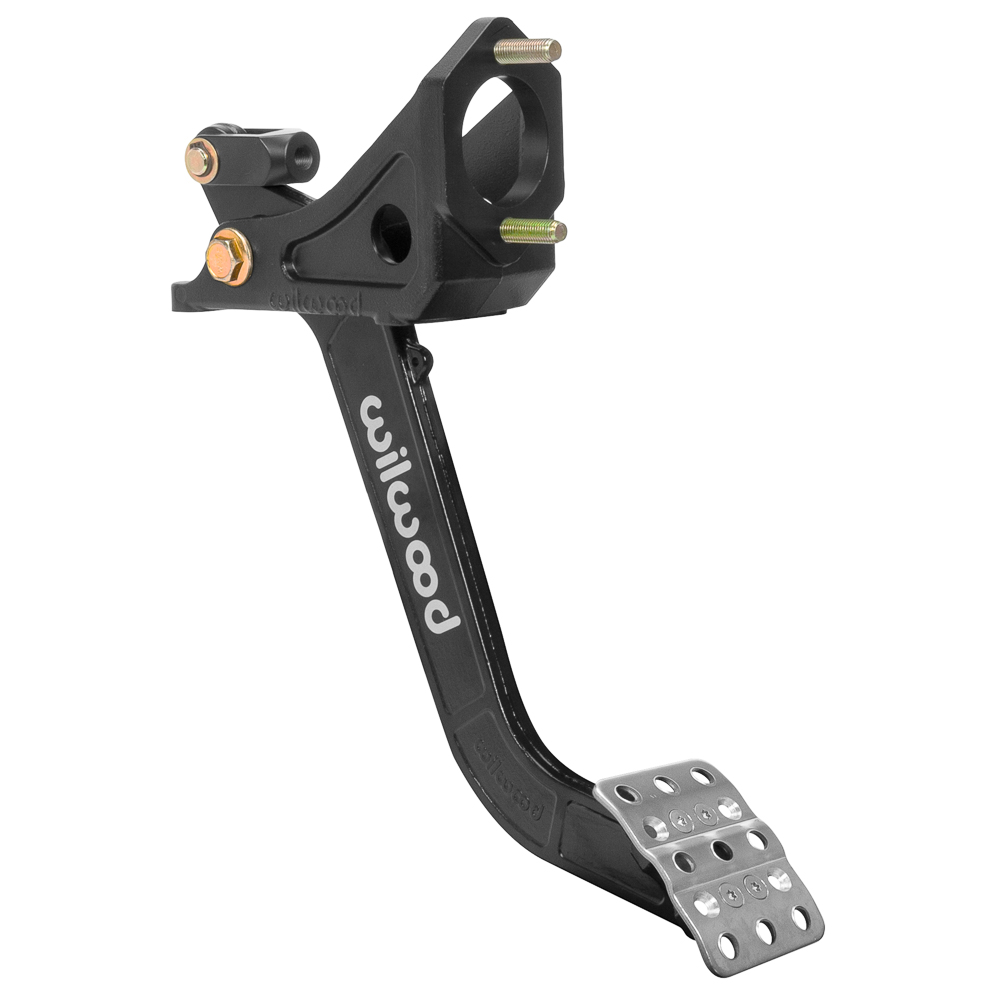

Wilwood Adjustable Single Pedal - Reverse Mount - 6:1

Wilwood Adjustable Single Pedal – Reverse Mount – 6:1 (340-13574) is a compact, lightweight swing-hung pedal assembly for either brake or clutch use, designed to mount the master cylinder in a reverse position on the cabin side of the firewall. The assembly features a lightweight aluminium frame and a high-strength, reinforced I-beam style forged pedal arm with a 6:1 ratio for strong leverage and precise pedal feel with relatively low pedal effort. The pedal pad has a non-slip, waffled surface and can be adjusted laterally to suit driver preference or to create clearance for a cage, steering column, or other components.

The pedal accepts Wilwood vertical mount flange master cylinders (single or tandem outlet). If you plan to use a horizontal mount flange master cylinder, an adapter kit is required. Master cylinder is ordered separately (type and bore size).

Specifications
Material: Aluminium
Finish: Black E-coat
Mount type: Swing mount (hung pedal)
Mount facing: Reverse
Balance bar: No
Mount length: 11.28"
Pedal ratio: 6.0:1
Pedal length: 12.02"
Adjustable pedal pad: Yes, lateral adjustment
