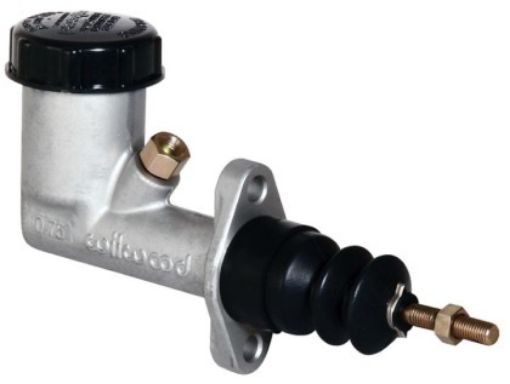

Wilwood Aluminum Master Cylinder 0.625" Bore - Integral Reservoir - Part No. 260-2636
The Wilwood Aluminum Master Cylinder with 0.625" bore is a compact and lightweight aluminum master cylinder, well suited for clutch systems and other small hydraulic functions where a dependable and space-saving solution is needed. This type is known for its simple and robust design and is often used in motorsport, custom builds, and upgraded road cars.
The master cylinder is made from aluminum with an integral fluid reservoir, providing a compact design and making it easier to install in engine bays or other applications where space is limited. The integral reservoir holds 1.4 oz of brake fluid and is fitted with a plastic screw-on cap that helps protect the fluid.
With a 0.625" bore (5/8" / approx. 15.9 mm), this Wilwood master cylinder is relevant for setups where precise hydraulic actuation is required. It has a single outlet and suits applications where a single outlet master cylinder is the correct choice.
Specifications
Manufacturer: Wilwood
Part number: 260-2636
Type: Compact master cylinder
Material: Aluminum
Finish: Bare aluminum
Bore size: 0.625" / 5/8" / approx. 15.9 mm
Area: 0.310 in² / approx. 200 mm²
Stroke: 1.40" / approx. 35.6 mm
Volume: 0.43 cu in / approx. 7.0 cm³
Outlet: 1 pcs.
Outlet thread: 3/8-24
Reservoir type: Integral
Reservoir volume: 1.4 oz / approx. 41.4 ml
Reservoir volume: 2.57 cu in / approx. 42.1 cm³
UPC: 889545067415
This master cylinder is an excellent choice for projects where low weight, compact dimensions, and stable function are important. It is well suited for custom installations, motorsport, and hydraulic clutch solutions where a proven Wilwood solution is desired.
