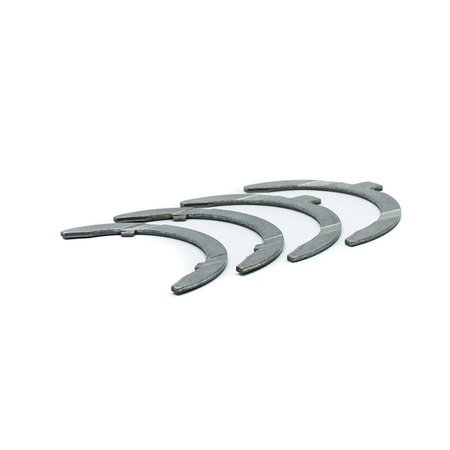

ACL thrust bearings Toyota 1E/2E/4E-FE

ACL thrust bearings for Toyota 1E, 2E and 4E-FE engines with standard crankshaft. ACL thrust bearings are used for engine rebuilds, tuning and performance builds where the axial movement of the crankshaft must be correctly controlled.

The thrust bearings control the forward and backward movement of the crankshaft in the engine block and are an important part of the engine bottom end. Correct axial clearance is important for stable crankshaft control and for reducing unnecessary load from the clutch, flywheel and other rotating components.

ACL bearings are developed for engines where high quality, precise fitment and good durability are required for engine rebuilds and performance use. A correctly installed thrust bearing set helps ensure that the crankshaft operates stably under load.

Specifications:
Type: ACL thrust bearings / thrust washers
Crankshaft: Standard size (STD)
Bearing type: Upper and lower thrust bearings
Contents: 4 thrust washers
ACL part number: 2T8392-STD

Maximum shaft size: 52.75 millimetres
Maximum tunnel size: 64.25 millimetres
Maximum total length: 2.49 millimetres

Fits engine code:
1E / 2E / 4E-FE
