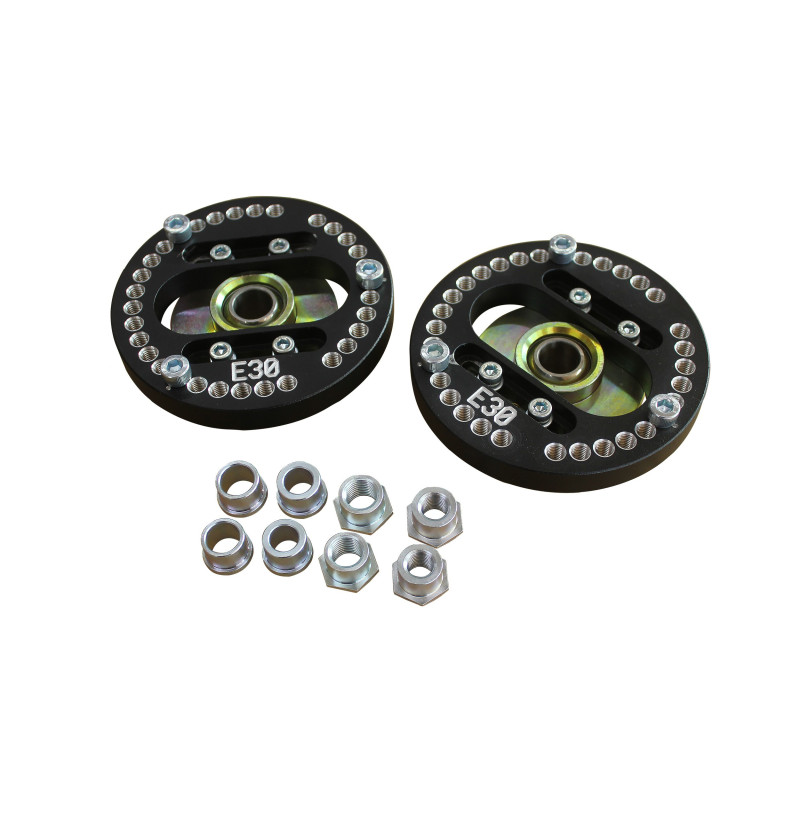

BMW E24/E28/E30/E32/E34 3D camber plates

Manufacturer: Swagier
3D camber plates for BMW E24, E28, E30, E32 and E34. For camber and KWSZ/caster adjustment in drift, track day, stance and motorsport. CNC-machined aluminium with maintenance-free Fluro bearing.

Availability Available on order

€160.02
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

3D camber plates for BMW E30, E34, E32, E24 and E28 are used for adjusting camber and KWSZ/caster on the front wheels. They are developed for drift, track day, stance, motorsport and performance builds where better adjustment of the front axle geometry is needed.

Camber plates make it possible to change the front wheel angle, so the car’s steering characteristics and contact patch can be adapted to the setup. KWSZ/caster adjustment can also help improve steering response, directional stability and steering wheel self-centring.

The camber plate is made from 15 millimeter PA6 aluminium, CNC-machined and black anodised. The bearing housing is CNC-turned from reinforced structural steel and then galvanised for better protection. The kit uses a maintenance-free Fluro bearing with reduced bearing play, made from stainless steel and suitable for high loads.

The mounting bolts are galvanised M8 bolts with fine thread. The kit is supplied with flange nuts and Schnorr locking washers, which help secure the assembly against loosening during use. Threadlocker must be used when mounting the bolts in the camber plate.

*
*
*
