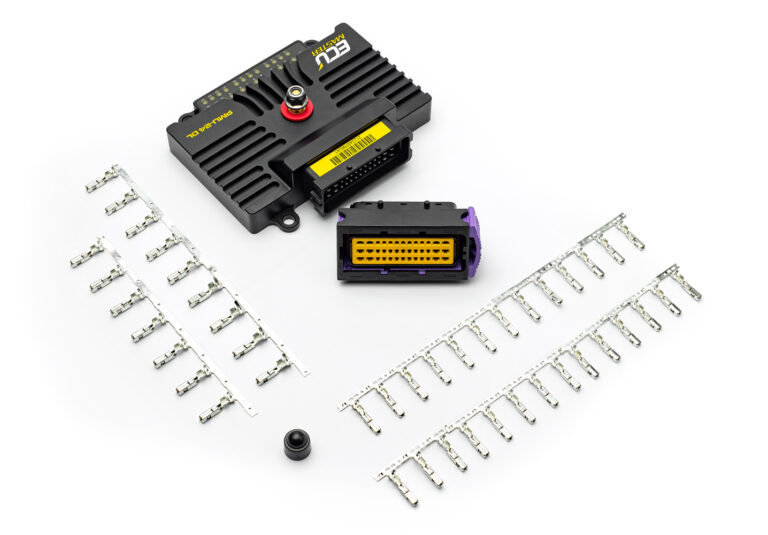

ECU Master PMU 24 - With datalogger

Name: ECU Master PMU 24 - With datalogger
SKU: 1.00235.05042
Price: 1591.67 EUR
Availability: InStock

Manufacturer: ECU Master

SKU: 1.00235.05042

Availability Available on order

Stock status explained
In stock	We have this item in our warehouse
Out Of stock	We do not have this item in our warehouse but we can order it for you
On the way to us	We ordered this item for expected delivery and quantity please see above

€1591.67

Qty:

i h

Overview
Contact Us

PMU-24 DL is a new and enhanced Power Management Unit featuring all the benefits of the PMU-16, now with 24 high-side outputs and internal data logging memory as a standard. All output states, voltage, and current information are transmitted via CAN bus to a dash display to inform the driver of potential problems. All logged data can be downloaded from the device for later analysis

170 Amps total continuous current.
Operating voltage: 6-22V (immunity to transients according to ISO 7637)
Temperature range: AECQ-100 GRADE 1, -40 to +125°C.
10x 25 Amps high-side power outputs (PWM capable).
6x 15 Amps high-side power outputs.
8x 7 Amps high-side power outputs.
Up to 16 analog inputs.
24x tricolor LED for each power output state.
2x CAN 2.0 A/B.
256 MB data logger memory.
Up to 500 Hz logging frequency.
Real-time clock for data stamping.
3D accelerometer/gyroscope.
Built-in “inertia switch” in case of an accident.
Easy access to CAN-bus data (imports and exports).
Internal data processing using logical functions, numbers, timers, and tables.
Custom PID controllers.
Fully customizable ”logic” for each output.
Flexible and intuitive client software.
Dimensions: 131x112x33mm, weight 385g
