Holset Super HX40 - Original

Holset HX40 turbo - Super 40

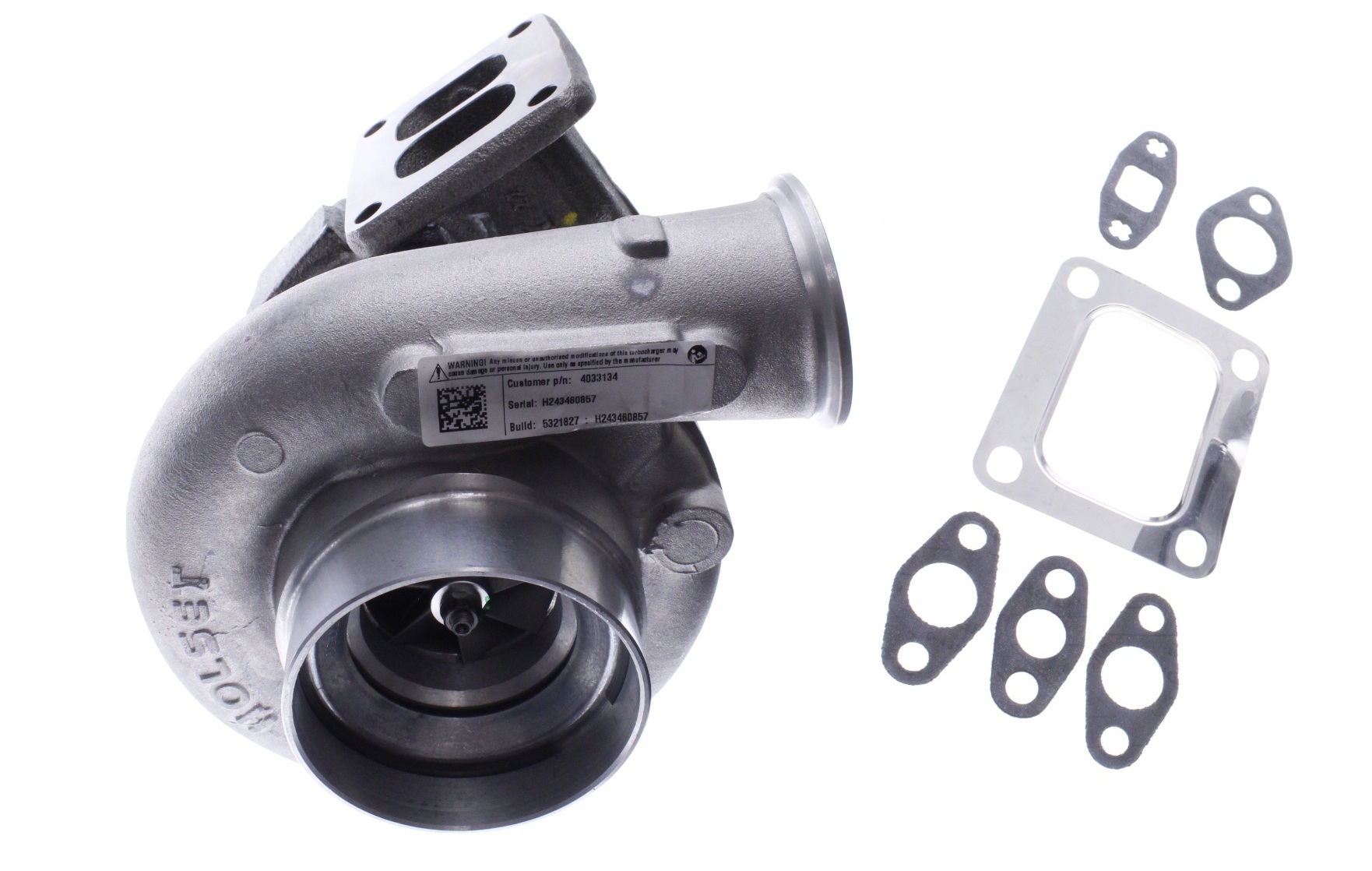

Original Holset HX40 Performance Turbocharger

This Holset HX40 turbo fits on diesel engine from 3.0 - 7.4 liters. - Petrol engine 1.8L to 3.0L.

This turbocharger has a T4 flange on the supply side with split entry.

Holset HX40 turbo info

Manifold flange: T4 divided
Downpipe flange: 6- bore
Bolt hole cc: 60mm
Bolt hole CC (across):120mm
Exhaust side: 16cm² (small size)

Compressor housing inlet: 102mm
Compressor housing outlet: Vband 52mm x 74mm

Compressor wheel inlet: 58mm
Compressor wheel outlet: 85mm
Turbine wheel inlet: 76mm
Turbine wheel outlet: 64mm

Oil cooled / 360 ° bearing

For petrol engine this is good up to 700hp. - Diesel tuning up to 400 hp.

"Super tractor turbo"
