K04-015X Upgrade turbo - 1.8T - 275hk. CNC Billet Wheel 6+6

Turbo for longitudinal engine.

Availability: 2 in stock

We have ordered new stock: 2
Expected delivery date: April 07, 2021
SKU: 1.00159.06-F21L
7.337,32 kr
Ship to
Shipping Method
Estimated Delivery
No shipping options

K04-015X Upgrade turbo - 1.8T - 275hp. CNC Billet Wheel 6+6

This turbocharger fits on original exhaust manifold and downpipe. The intake is 51mm. instead of 45mm. For this, another suction hose must be used.

XL 46.4 / 62 mm Billet Compressor Wheel
Customizable "high-lift" actuator (5psi - 10psi)
26mm wastegate chamber with oversized 34mm cover

For turbo parts:
5,309,988,000; 53049700015
5,303,988,0005; 53039700013
5,3039880025; 53039880029
5,3039880073; 53039880005

Turbo OE numbers:
058145703L; 078145703B
058145703K; 058145703J

Fits to:
1996-99 Audi A4 Upgraded 1.8L-5V longitudinal
1996-99 Volkswagen Passat Upgrade 1.8L-5V longitudinal

In the pictures it can be seen that our intake pipe can come on. It can be done, but it is difficult. If you want maximum power out of the turbo, then we will not recommend this option, as the narrowing of our intake pipe in the last picture will not give a high enough flow.

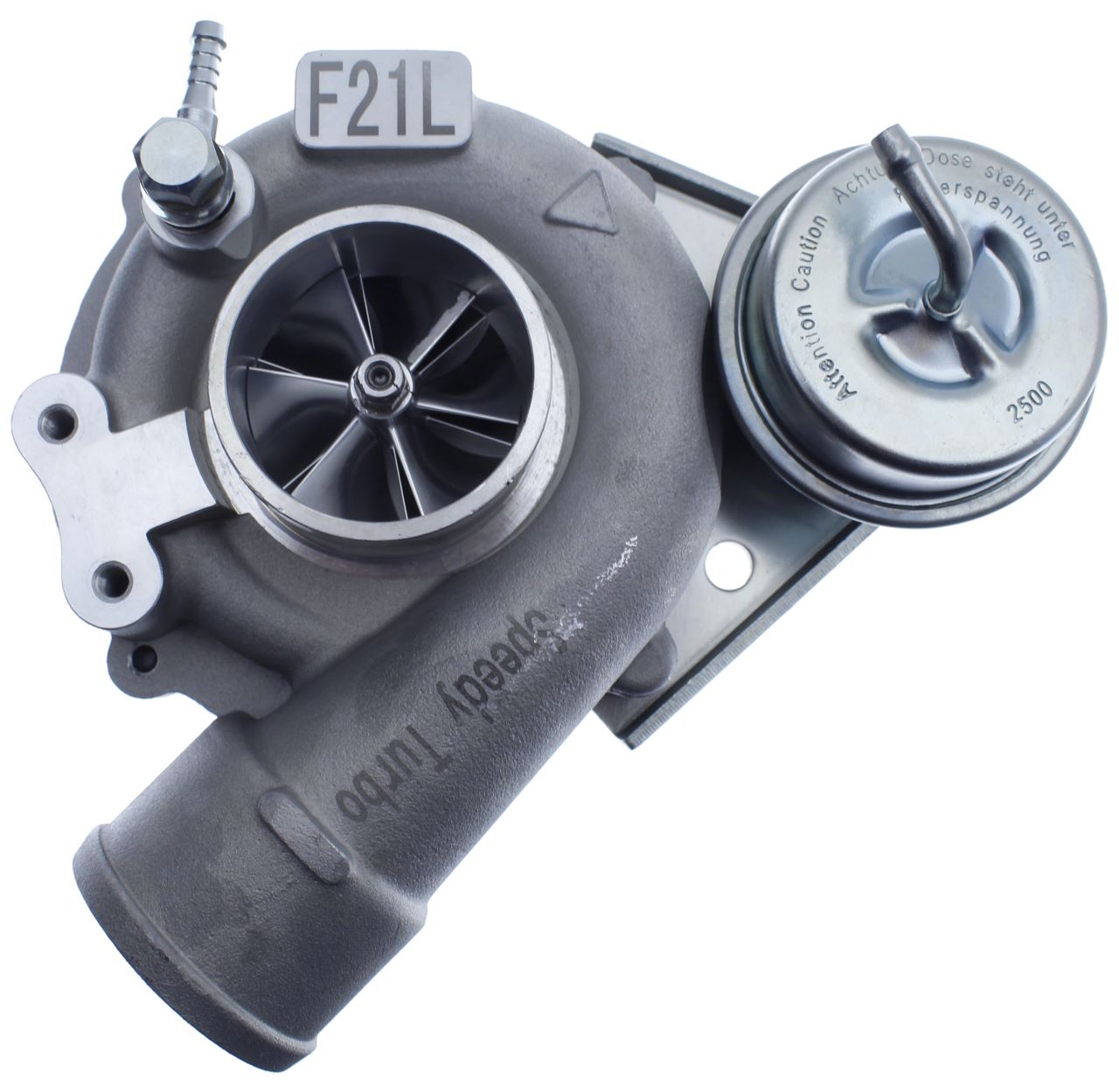

Picture of K04-015X Upgrade turbo  - 1.8T  - 275hk. CNC Billet Wheel 6+6
Picture of Audi A4 1.8T / 1.8T Quattro B5, AEB / ATW 96-01 - Intake pipe - Black
Picture of Audi A4, A6 and VW Passat - 1.8T downpipe - 76m.
