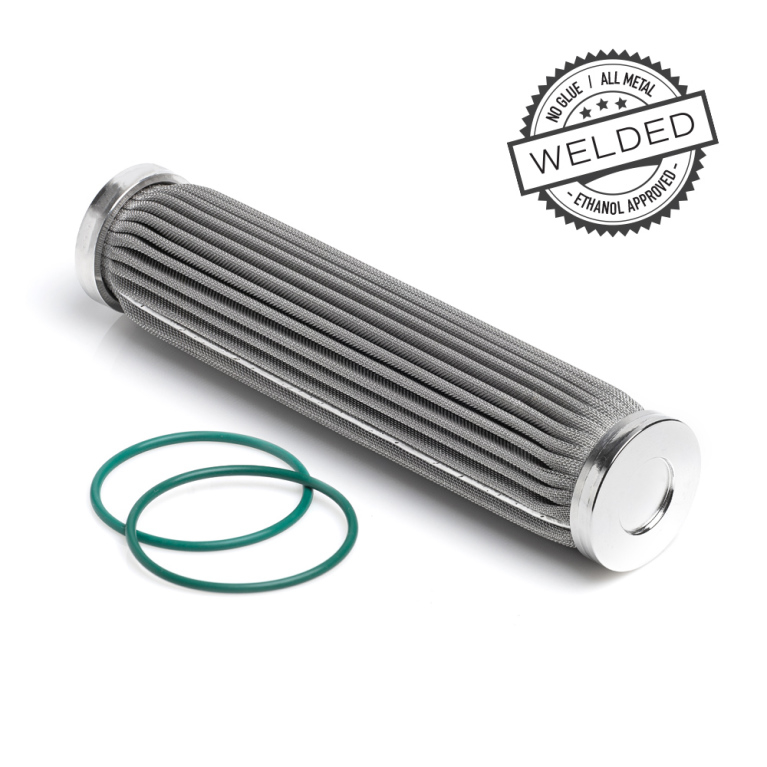

Nuke Performance 10 micron filter insert 200 mm is a replacement insert for Nuke Performance PF200 fuel filters. The filter is made from welded stainless steel and developed for high-performance fuel systems where fine filtration is required together with very high flow capacity. The filter insert is compatible with petrol, diesel, ethanol, methanol and E85.
The 200 millimetre long filter insert provides a significantly larger filter area than the short filter elements and ensures high flow with minimal pressure drop. The stainless steel construction without glue makes the filter insert particularly suitable for ethanol-based and other aggressive fuels.
The filter insert fits Nuke Performance PF200 AN8 and AN10 fuel filters and is the only filter insert designed for the PF200 series. 2 Viton O-rings are included, while the internal spring is reused from the existing filter. For optimal function, it is recommended to clean or inspect the filter insert at least once per season.
Specifications:
Type: Replacement filter insert
Filter material: Welded stainless steel
Filtration: 10 micron
Fuel compatibility: Petrol, diesel, ethanol, methanol and E85
Length: 202 millimetres
Diameter: 42 millimetres
Weight: 313 grams
Filter area: 150 square inches
Working pressure: 8 bar
Maximum pressure: 21 bar
Flow capacity: 1800 LPH
Pressure drop: Approx. 0.15 bar
End caps: Welded stainless steel
Contents: 1 x 10 micron stainless steel filter insert and 2 x Viton O-rings
Fits: Nuke Performance PF200 AN8 and AN10 fuel filters
