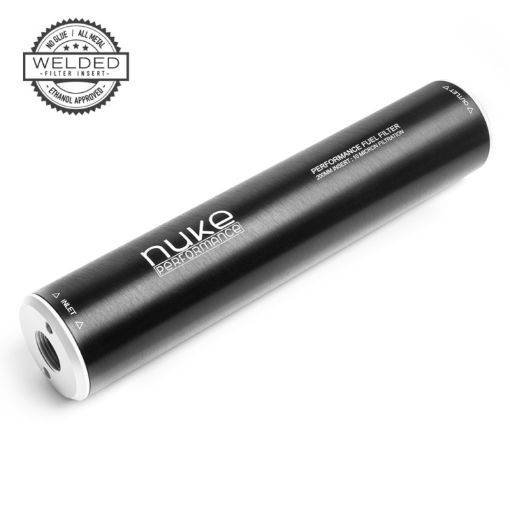

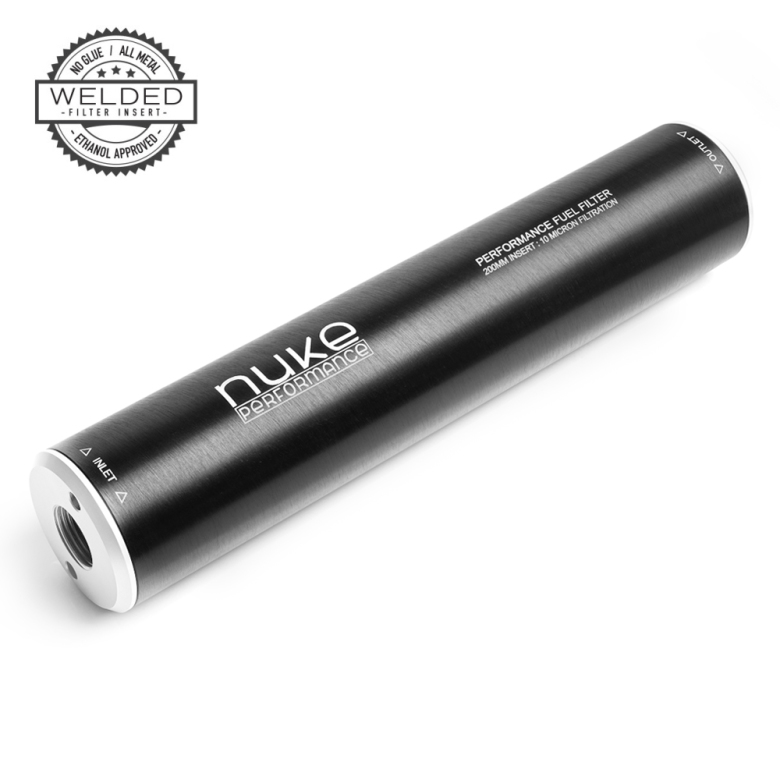

Nuke Performance PF200 is a high-flow fuel filter developed for motorsport and high-performance fuel systems where maximum filtration must be combined with minimal flow restriction. The filter is supplied complete with a 200 millimetre long 10 micron filter element in welded stainless steel, compatible with petrol, diesel, ethanol, methanol and E85.
The large PF200 filter element provides over 150 square inches of filter area and a flow capacity of up to 1800 LPH. The welded construction without glue makes the filter element particularly suitable for ethanol-based and other aggressive fuels, where traditional cellulose filters are not recommended.
The filter housing has a slim construction, making installation easier in motorsport and performance applications. The PF200 is supplied with AN10 ORB connections and a service-friendly filter element that can be removed and reused during service.
Specifications:
Type: Complete fuel filter
Model: PF200
Filter element: 10 micron stainless steel
Fuel compatibility: Petrol, diesel, ethanol, methanol and E85
Length: 270 millimetres
Diameter: 55 millimetres
Weight: 1099 grams
Filter area: 150 square inches
Inlet connection: AN10 ORB
Outlet connection: AN10 ORB
Working pressure: 8 bar
Maximum pressure: 21 bar
Flow capacity: 1800 LPH
Pressure drop: Approx. 0.15 bar
Filter housing: Aluminium
Contents: 1 x PF200 fuel filter with 10 micron stainless steel filter element
Part number: 200-03-201
